Best Practices For Load Cell Maintenance And Care

Accurate, reliable load cell performance is critical across industries—from manufacturing and logistics to healthcare, research, and beyond. These precision instruments form the backbone of countless operations where accurate force and weight measurements drive safety, quality, and efficiency.

Consistent maintenance is the best way to preserve that accuracy and extend equipment life. Neglecting it can lead to drift, downtime, and costly failures. Regular calibration, inspection, and cleaning prevent most issues before they start. In this guide, we’ll outline the essential practices for load cell maintenance and care, giving you practical steps to keep your systems running smoothly and your measurements dependable.

Understanding Load Cells and Their Role

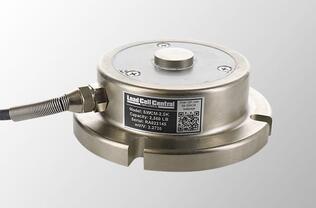

A load cell is a transducer that converts applied force or weight into an electrical signal. That signal is then used by control systems or displays to provide precise, repeatable measurements. Load cells are found in everything from process control and packaging systems to vehicle testing, robotics, and medical equipment—anywhere accuracy matters.

Different types of load cells are designed to meet different operational demands:

• Strain Gauge Load Cells: The most common type. They measure strain through changes in electrical resistance as the metal body flexes under load. Known for their accuracy and durability, they’re used in most industrial and laboratory applications.
• Hydraulic Load Cells: These operate using pressurized fluid rather than electrical strain gauges. Because they don’t rely on excitation voltage, they’re ideal for hazardous or heavy-duty environments and high-capacity weighing.
• Piezoelectric Load Cells: These generate an electrical charge when placed under mechanical stress. They excel in measuring dynamic or impact forces where quick response is key.

Regardless of the type, load cells form the foundation of modern weighing and force measurement systems. When properly maintained, they provide reliable data that ensures safety, consistency, and efficiency in everyday operations.

How to Care for Load Cells

Load cells are precise devices, and like any precision instrument, they need thoughtful handling and routine care. The goal is to prevent small issues from becoming big problems—and to keep accuracy within spec for years.

Mounting and Installation

Correct mounting is the starting point for dependable performance. The load cell must be installed in line with the intended direction of force. Any off-axis or side loading can cause measurement errors and, over time, physical damage to the element.

The mounting surface should be solid, level, and free of vibration or deflection. Even minor flexing in the support structure can lead to inconsistent readings. Always use the mounting hardware or accessories recommended by the manufacturer. Improvised brackets or mismatched bolts can create uneven stress and premature failure.

Regular Inspection and Cleaning

Visual inspections are one of the easiest and most effective forms of maintenance. Look for early signs of wear, corrosion, loose fasteners, or cracked seals. Pay special attention to cables and connectors—frayed wiring or worn insulation can compromise signal integrity.

For cleaning, avoid aggressive methods. Use a soft cloth or brush with mild, non-corrosive cleaning agents. Do not use solvents, steam, or high-pressure sprays, as these can damage protective coatings and seals. Focus on key areas like the load introduction points and connector junctions where dirt and debris tend to build up.

Environmental Protection

Environmental factors are one of the leading causes of load cell degradation. Moisture, dust, chemicals, and vibration all impact performance over time.

To mitigate this, use protective covers, bellows, or enclosures rated for your application environment. For outdoor or washdown settings, select models with appropriate IP (Ingress Protection) ratings. In locations with wide temperature swings, temperature-compensated load cells help maintain accuracy despite expansion and contraction of materials.

Testing for Faults and Performance Issues

Even well-maintained load cells can develop faults from overload, wiring damage, or environmental exposure. Periodic testing helps confirm that your system is performing as it should.

Common Signs of Load Cell Problems

• Erratic or drifting readings: Output fluctuates even when no load changes occur.
• Zero shift: The output signal drifts when unloaded, indicating possible mechanical creep or temperature effects.
• No output or unresponsive cell: Could point to wiring breaks or internal damage.
• Nonlinear or unstable output: The cell may be damaged, overloaded, or affected by circuit faults.
• Visible damage: Cracks, rust, or bent mounting parts often signal underlying structural issues.

Basic Load Cell Testing Procedures

• Zero Balance Check: With the cell unloaded, the signal should read near zero—typically within ±1 mV/V. A larger deviation usually indicates overload or damage.
• Bridge Resistance Test: Measure resistance between excitation and signal leads using a multimeter. Compare readings to manufacturer specifications. Significant variation may indicate internal faults.
• Output Verification: Apply known test weights and confirm that the output increases linearly with the applied load. Deviations suggest sensor or circuit problems.
• Ground Resistance Check: Measure resistance between the load cell body and ground to detect electrical leakage or insulation failure.
• Simulator Test: Use a load cell simulator in place of the sensor to determine whether electrical issues stem from the load cell or the indicator system.

Calibration and Accuracy Checks

Calibration ensures that a load cell’s output corresponds precisely to actual force or weight. Over time, normal use, temperature changes, or mechanical wear can affect that relationship. Regular calibration is essential for maintaining consistent performance.

Calibration Steps

1. Remove all load and zero (tare) the indicator.


2. Apply a known calibration weight.


3. Adjust the indicator output to match the known value.


4. Repeat this process at several points across the range to verify linearity.



If readings remain inconsistent after calibration, inspect for mechanical binding, misalignment, or wiring issues. If the problem persists, the load cell may need professional evaluation or replacement.

Troubleshooting Common Issues

Load cells can be affected by electrical, mechanical, or environmental factors. Understanding the source of the problem helps you take the right corrective action.

Electrical and Signal Issues

Check all wiring and connectors for corrosion, looseness, or breaks. Poor connections often cause intermittent readings or total signal loss. Test for shorts or ground loops with a multimeter and replace damaged components as needed.

Mechanical Issues

Misalignment, side loading, or deflection in the mounting structure can all distort readings. Ensure the load is applied evenly and that all mechanical components are rigid and secure. Replace any bent or worn parts immediately.

Environmental Effects

Rapid temperature shifts can cause measurement drift or material expansion that affects readings. Keep the load cell shielded from direct heat sources or cold drafts. Replace units showing corrosion, water ingress, or other environmental damage.

Understanding Load Cell Identification Codes

Every load cell carries a unique identification code or serial number that records its model, capacity, output sensitivity, and wiring configuration. Keeping these details documented helps with service, calibration, and ordering replacements.

Maintaining accurate records also supports compliance with quality systems like ISO 9001 and simplifies warranty claims or performance audits.

When to Call a Professional

Some issues require specialized tools and expertise. It’s best to seek professional help when:

• Calibration or troubleshooting fails to restore proper operation
• The load cell shows visible deformation, cracking, or insulation failure
• Multi-cell systems need synchronization or network integration
• Accredited calibration or certification is required for compliance

Professional technicians have the diagnostic equipment to pinpoint internal faults and restore accurate performance, minimizing downtime and preventing costly replacements.

The Importance of Proactive Load Cell Care

Routine maintenance and calibration are simple but powerful ways to protect your investment. Regular checks for alignment, cleanliness, and environmental protection can prevent drift, signal instability, and system failures before they happen.

A proactive approach—combined with consistent documentation and timely service—helps extend load cell lifespan and ensures ongoing precision in your weighing and force measurement processes.
