Load Cell Amplifiers, Signal Conditioners, and Digital Displays

No scale system is complete without reliable load cell electronics, and our electronics can turn a failing system into the cornerstone of an industrial manufacturing process. Load Cell Central has been providing trustworthy electronic weighing systems to customers for over 30 years.  Our electronics work with any load cell or scale utilizing a traditional strain gage output.  We offer real-time displays for basic weighing, signal conditioners and indicators with data logging for analysis, high-frequency systems for destructive testing, wireless electronics for difficult to reach areas, and various outputs to interface with any existing system.  We offer systems tailored for use with truck scales, batch weighing, check weighing, process control, parts counting, and many others.  Our electronics can be used with any existing interface which utilizes USB, RS232, RS422, RS485, current loop, 4-20mA, 0-10V, Profibus, or Modbus.  Our indicators can also provide relay functionality for fully automated systems.

Read More



Electronics Selection

Load Cell Displays

Digital Displays

Handheld, desktop, wall and panel mount

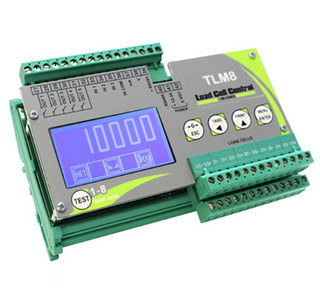

Load Cell Amplifiers

Load Cell Amplifiers / Signal Conditioners

0-10V, 4-20mA, USB, RS232/485, & Profibus outputs

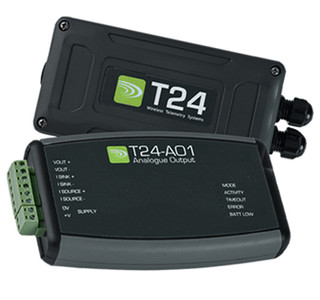

Wireless Weighing

Wireless Weighing

Simple wireless load cell solutions

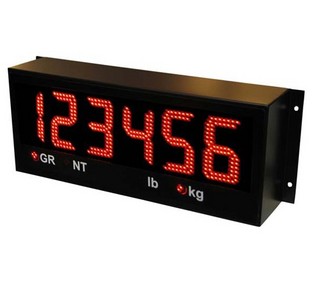

Remote Displays

Remote Displays

From 0.56" to 6" tall LED displays

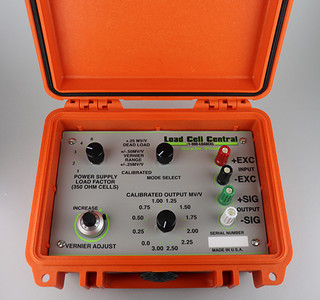

Load Cell Simulators / Testers

Load Cell Simulators & Testers

ScaleTools™ Scale testing and diagnostic tools

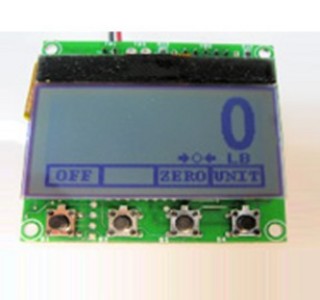

Custom Electronics

Custom Electronics

Recent Custom Electronics Manufactured by Load Cell Central

T24-ACMi

T24-ACMi

Wireless load cell transmitter. 3 Vdc (2xAA) power supply.

X24-ACMi-SA

X24-ACMi-SA

Wireless load cell transmitter for use in Zones 1 & 2 hazardous areas,

X24-HD

X24-HD

Wireless handheld load cell display for use in Zone 1 & 2 hazardous areas.

T24-BSu

T24-BSu

Wireless load cell base station.

T24-HS

T24-HS

Wireless, handheld load cell indicator.

T24-AR

T24-AR

Wireless telemetry active repeater for load cells.

T24-HR

T24-HR

Wireless, handheld, load cell indicator with roaming capability.

T24-BSi

T24-BSi

Long range wireless load cell base station with serial output.

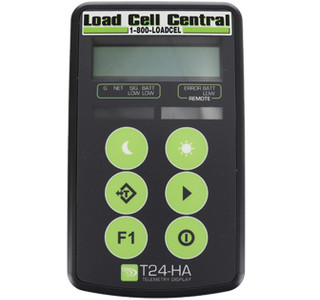

T24-HA

T24-HA

Wireless, handheld load cell indicator for up to 12 load cells.

T24-SO

T24-SO

Serial output wireless load cell receiver.

We also offer custom programming for many of our digital indicators.  If we do not have an off the shelf item to meet your needs, our sales technicians can discuss your application and assist in designing a custom, unique program that is always made to order.

From low-cost OEM applications to extravagant, turn-key solutions, Load Cell Central can supply accurate scale electronics to meet your needs.  With our 24/7 technical support, you can limit your down-time and maintain efficiency. Never miss another deadline or quota with Load Cell Central electronics and customer service on your team.  When ordered with a NIST traceable calibration, you will receive a plug-n-play system ready to exceed your expectations.

Frequently Asked Questions

  1. 1) Can I monitor more than one wireless load cell from the same handheld device?
  2. Indeed you can. Both the T24-HR and HA have multiple load cell capability.
  3. 2) Do your wireless electronics use a Bluetooth connection?
  4. They use a propriety 2.4GHz signal which similar to wifi or Bluetooth. These devices, however, are not specifically Bluetooth and therefore cannot connect to a mobile phone or tablet.
  5. 3) Are your wireless load cells and electronics water-resistant? Can they be used outdoors in all weather conditions?
  6. Most enclosures for the T24 products have an IP67 rating and an operating temperature range of -20 °C to +50 °C.  An IP67 rating means these products are completely protected from dust and waterproof up to 1 meter immersion.
  7. The WL-CTL2 wireless load cell is IP67 and rated for outdoor use in all weather conditions.  Its compensated temperature range is -10 to +40C.
  8.  4) What is the range of your wireless load cells?
  9.  Up to 800 meters (2,600 feet) line of sight.
  10.  5) Can any load cell be made wireless?
  11.  Yes, any electronic strain gauge load cell can be wired into one of our transmitters for wireless telemetry.
  12.  6) How are the T24 products powered?
  13.  Most transmitters are battery powered either by using 2 AA batteries, or 2 D batteries.  Some transmitters also include terminals for hard wiring power.
  14.  7) How long will batteries last?
  15. Depending on the device, the battery life can be up to a year wend set at 1 transmission per second.
