Load Cell Mounts

Load cell weighing assemblies offer big advantages in their ease of installation, moderate cost, and design flexibility. For a relatively small initial investment, a hand-fed or manually controlled blending operation can be converted into a profit producer with lower operating costs, more precise control of costly ingredients, and enhanced product quality. Data outputs can interface with other equipment, and facilitate reports for production controls.

Specifications can be emailed or faxed on request. Load Cell Central also custom designs load cell mounts and hardware for a broad range of applications.

Mounting Assembly Selection

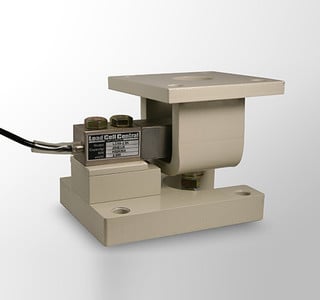

Compression Mounts

Tank weighing assemblies

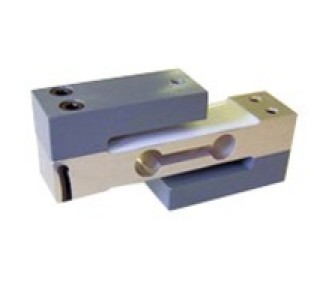

Custom Mounting Assemblies

Recent Custom Mounting Assemblies Manufactured by Load Cell Central

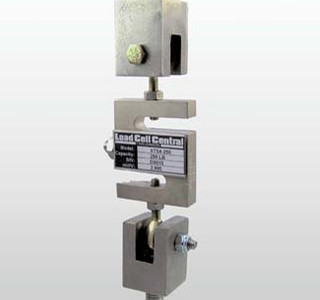

Tension Mounts

For suspended tank / hopper scales

Miniature S-Type Load Cell Tension & Compression - JRS1

Miniature S-Type Load Cell Tension & Compression - JRS1

The JRS1 miniature S-Type load cell has female threaded holes for easy in-line mounting in ranges from 2.5 through 500 newtons (0.5 to 112 pounds)

T24-ACMi Wireless Sensor Transmitter

T24-ACMi Wireless Sensor Transmitter

The T24-ACMi is a wireless transmitter designed for inputs from load cells, pressure sensors, torque transducers, strain inputs, temperature sensors, pulse inputs, potentiometers, and 4-20 mA / 0-10 VDC. Wireless transmission distance up to 800m (line of sight)

Vessel, Hopper, Silo Scale Load Cell - SPWE

Vessel, Hopper, Silo Scale Load Cell - SPWE

The SPWE is an integrated load cell and mount designed for vessel weighing applications. It can accept a 3 degree off axis angle and remain accurate. Low profile design makes it ideal for existing applications where headroom is limited.

Load Cell Simulator

Load Cell Simulator "Top of the Line" PVS-11

The PVS-11 load cell simulator from Load Cell Central is ideal for calibrating scale indicators, troubleshooting, and verifying proper indicator setup. It can also be used for simulating pressure and torque strain gauge based transducers.
