How To Use An S-Type Load Cell
April 2, 2025
Anyone working with force measurement equipment should understand how S-type load cells work. These compact and versatile devices can measure both tension and compression, making them useful in a wide range of testing and manufacturing environments. Whether you’re developing products, running fatigue tests, or monitoring structural performance, S-type load cells can help ensure accurate, repeatable force measurements.

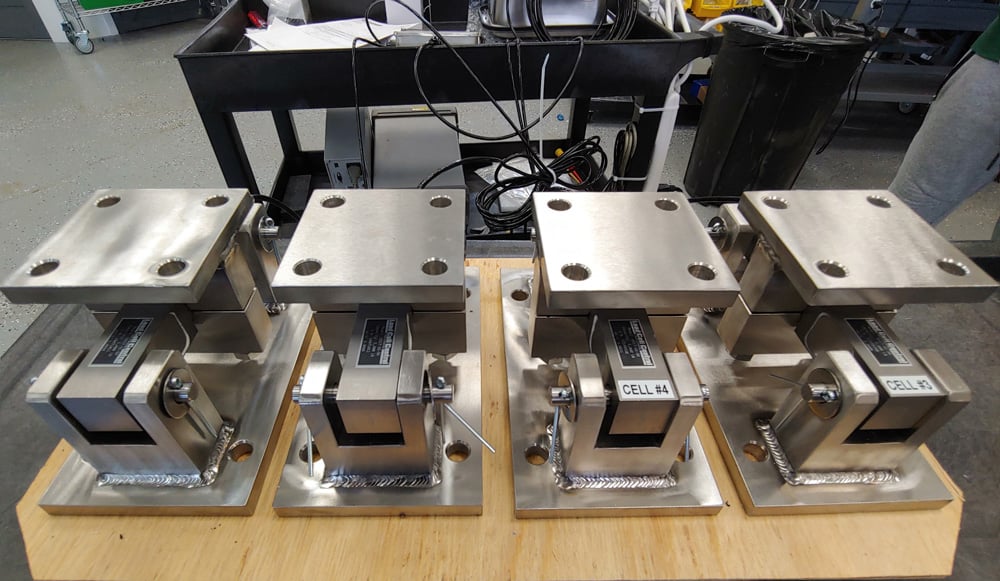

What Is an S-Type Load Cell?
S-type load cells—named for their distinctive "S" shape—are designed to convert mechanical force into an electrical signal. This unique shape allows them to maintain consistent performance under both tension and compression. They're often constructed from robust materials like stainless steel and are engineered for precision, even in demanding applications.
At the core of an S-type load cell are strain gauges arranged in a Wheatstone bridge configuration. As force is applied to the load cell, the metal body flexes slightly. This tiny deformation alters the resistance in the strain gauges, which generates a measurable electrical signal proportional to the applied load.
Thanks to their shape and internal structure, S-type load cells can maintain a high level of accuracy while handling dynamic forces in both directions. Their small footprint also makes them ideal for applications where space is limited.
Where Are S-Type Load Cells Used?
These sensors are found across many industries. Below are a few common applications:
Fatigue Testing for Prosthetics
In prosthetic development, S-type load cells help engineers simulate everyday stresses on artificial limbs. They’re used in test setups that apply repeated loading to components, helping to assess durability and performance under realistic conditions.
Furniture Testing
Manufacturers use these load cells to evaluate the structural integrity of items like chairs, tables, and recliners. By subjecting furniture to repeated loading cycles, they can identify weak points and verify that designs meet safety standards before going to market.
Material Testing
In both R&D labs and production environments, S-type load cells are used to test the mechanical properties of materials like metals, plastics, and composites. Whether it’s a tensile strength test or a compression check, these sensors deliver the precise force data needed to validate product performance.
How Do They Work?
The principle behind an S-type load cell is relatively straightforward. When a force is applied, the load cell’s metal body bends slightly. Strain gauges attached to the surface detect this deformation and respond by changing their electrical resistance. These changes are fed into a Wheatstone bridge circuit, which translates them into a measurable signal. That signal is then amplified and read by a data acquisition system or display unit.
What sets S-type load cells apart is their ability to measure both compression and tension with equal accuracy. Their design helps evenly distribute the load, minimizing error and ensuring consistent results across a variety of conditions.
How to Use an S-Type Load Cell
1. Choose the Right Model
Select a load cell with the appropriate capacity for your application. Overloading or using a cell that’s too large for your measurement range can reduce accuracy. Environmental conditions and test dynamics should also factor into your choice.
2. Mount It Properly
Correct mounting is essential. Typically, S-type load cells are installed using rod ends or eyebolts that align the force directly through the cell’s axis. Improper alignment, swaying, or rotation during testing can lead to incorrect readings.
3. Connect to a Measurement System
Once the load cell is installed, connect it to a signal conditioner or data acquisition system. This setup captures and processes the electrical signal generated by the strain gauges, converting it into force readings that can be monitored in real time.
4. Calibrate Before Use
Calibration ensures accurate data. This typically involves applying known weights or forces to the load cell and adjusting the output signal accordingly. Regular calibration helps maintain measurement integrity over time.
5. Conduct Your Tests
With everything in place, you’re ready to begin testing. Whether you're applying static loads or running fatigue cycles, the load cell will provide continuous force feedback for analysis and documentation.
Advantages of S-Type Load Cells
- Dual-Functionality: Measures both tension and compression.
- Compact Design: Fits in limited spaces, ideal for benchtop setups or embedded systems.
- High Accuracy: Delivers precise data needed for critical testing.
- Cost-Effective: Provides lab-grade performance at an accessible price point.
- Easy Integration: Works with most existing signal conditioners and DAQ systems.
Potential Challenges
Even though S-type load cells are widely used, there are a few limitations and issues to keep in mind:
- Improper Mounting
If the cell isn’t aligned correctly or if hardware becomes loose, readings may be inaccurate. Always follow the manufacturer’s installation guidelines.
- Not Ideal for Every Application
In situations where compression accuracy is crucial and tension isn’t needed, other load cell types—like shear beam or pancake cells—might perform better.
- Rotational Sensitivity
These load cells are designed to measure straight-line forces. Any twisting or rotational load can compromise accuracy and may damage the sensor over time.
Expert Help When You Need It
S-type load cells are powerful tools for improving the reliability and precision of force measurements across a wide range of industries. When selected and installed correctly, they deliver dependable results that can support product development, safety validation, and quality control.
If you're unsure which load cell is right for your application or need assistance integrating one into your setup, Load Cell Central offers expert guidance and a full range of solutions. Reach out to our team—we’re happy to help.
