The Complete Buyer’s Guide to Choosing the Right Load Cell for Your Application

Knowing how to choose the right load cell starts with a clear definition of your measurement priorities. Whether you're working in manufacturing, research, agriculture, or logistics, the type of load cell selected can influence data fidelity, system lifespan, and operational confidence.

A mismatch between sensor capability and application stressors can result in instability, poor accuracy, or frequent maintenance demands. The solution is in selecting a load cell engineered for the specific physical and environmental forces at play.

Technical variables like range, form factor, and housing material deserve as much attention as the tools used to read and process measurement outputs. A careful evaluation of your system’s full scope (not just its load-bearing demands) sets the foundation for reliable results.

The Job of Load Cells in Measurement Systems

At their center, load cells convert mechanical force into electrical signals. This conversion happens through strain gauges or other sensing elements, which react to deformation under load. The result is an analog or digital output proportional to the applied force.

In practical terms, this means that what begins as pressure, tension, or weight can be interpreted in volts or bits. Across industries, these transducers are the silent backbones of measurement systems.

For example, in aerospace, they confirm tolerances in engine testing. In construction, they monitor structural force during material testing. In logistics, they play a part in precise packaging and weighing.

What makes a load cell so versatile is its range of configurations. Compression types register downward force, while tension versions respond to pull. Shear beam designs excel under lateral forces. Each model responds differently to loading conditions, which is why choosing based on application (not assumption) is important.

Their reliability makes them invaluable. But their performance depends on how they’re housed, installed, and read. A quality sensor poorly applied will fail to meet expectations. Measurement systems need consistency and repeatability, not just raw sensitivity. That’s why knowing how a load cell fits into the broader measuring process is important before selecting a model.

Matching Load Cell Types to Application Demands

Not all load cells are created for the same environment or purpose. Identifying the right form begins with load direction, physical constraints, and support structure. Compression load cells, for instance, are most appropriate when force is applied vertically. These are common in weighbridges, tanks, and press machines. They tend to have compact footprints and high capacities.

Tension models detect pulling forces. They're often found in overhead measurement tasks, such as crane weighing or material testing rigs. When space is limited or both compression and tension need tracking, S-type load cells provide versatility through their bidirectional sensing.

Shear beam and bending beam designs are best for floor platforms or industrial batch systems where weight is unevenly distributed. They offer a low profile and stable output under side loads. Single-point options serve lighter loads and are widely used in retail or lab scales. Their advantage lies in precision and self-centering ability, making them perfect for compact platforms.

Each load cell has advantages shaped by its internal geometry and intended use. For best results, the physical form should match the mechanical setup. Anything less risks unpredictable data and shortened device lifespan.

Capacity and Accuracy: Getting the Numbers Right

Selecting a load cell without matching its range to the actual working load can produce poor results or early failure. Capacity should always be higher than the maximum expected force, but not so excessive that it sacrifices resolution. Too small a range introduces risk of overload. Too large, and the sensor may miss subtle variations.

Accuracy class speaks to more than decimal points. It reflects how well the sensor performs across multiple loads, including aspects like hysteresis, repeatability, and linearity. For laboratory use, tighter tolerances are usually required.

In contrast, industrial applications can function well with mid-range accuracy, provided the output is stable and consistent.

Environmental variations also affect capacity selection. Dynamic forces, off-center loads, or shock impact can all result in sudden spikes that exceed nominal ratings. A well-chosen margin of safety accounts for these effects without overcompensating to the point of signal degradation.

In every case, load cell selection should be rooted in the actual forces being measured, not theoretical maximums or averages. Matching both capacity and accuracy to the application keeps the sensor functioning within its optimal zone, preserving reliability over time.

The Importance of Load Cell Electronics

No load cell operates in isolation. It must be paired with load cell electronics that can interpret and display the signal in a usable format. These devices convert low-level signals into scaled outputs readable by operators or systems. Amplifiers boost signal strength, while analog-to-digital converters prepare the data for digital systems.

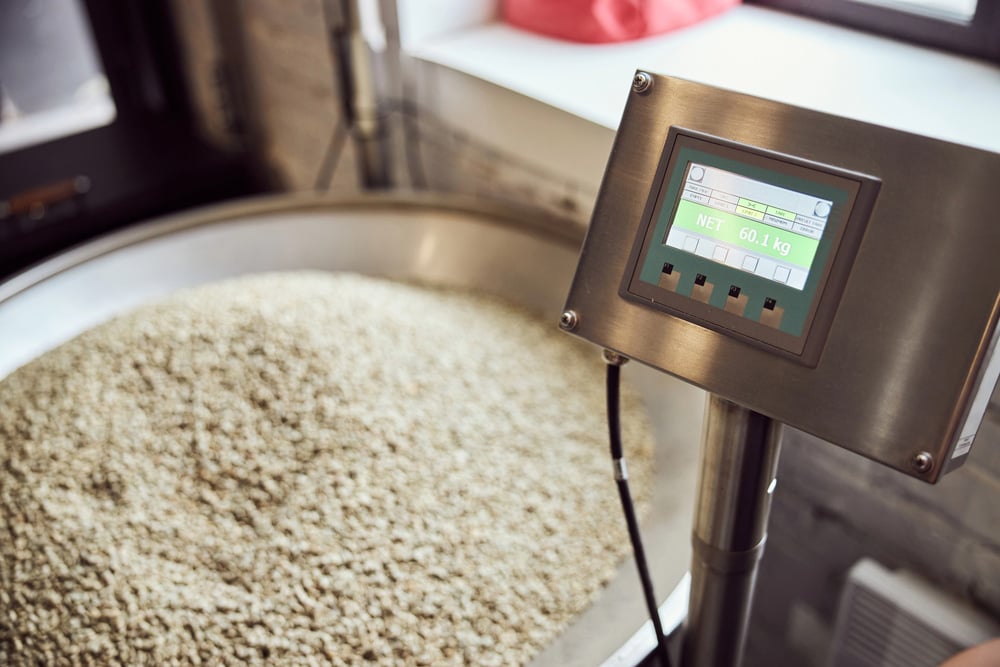

Displays range from simple numeric readouts to programmable screens capable of storing tare, calibration, or multi-channel information. In settings where feedback must be immediate, such as batching or dosing, high-speed indicators are often preferred.

Signal conditioners filter noise, stabilize output, and match voltage ranges to input requirements of controllers or data loggers. This step is especially important in environments with electrical interference or long cable runs.

Choosing the right electronics depends not only on what type of load cell is used, but also how the data is processed, stored, and used downstream.Inaccurate or slow feedback can compromise the integrity of the entire system. A high-quality sensor will fall short without matching electronics that can read it correctly.

Investing in appropriate displays, amplifiers, and converters means that each measurement can reflect the true mechanical input with as little distortion as possible.

Environments Matter: Considering Temperature, Moisture, and Vibration

Physical conditions around the sensor are also influential in long-term stability. Heat, cold, humidity, and mechanical stress all challenge load cell durability. For this reason, many sensors are rated for temperature compensation, meaning their output remains stable across a defined temperature range.

Outside this range, materials expand or contract in ways that impact resistance or signal integrity.

Moisture, especially in washdown or outdoor environments, can corrode connections or infiltrate seals. Stainless steel housings and welded enclosures help protect sensitive components. Selecting a sensor with a high ingress protection (IP) rating guards against water and dust intrusion.

Vibration introduces another layer of complexity. High-frequency motion can create false signals or wear down mechanical joints. In such conditions, mounting becomes as important as the cell itself. Shock mounting, damping materials, and reinforced brackets reduce motion transfer and preserve consistent readings.

Harsh environments demand more than just a rugged outer case. The internal design must be suited to survive the stresses without performance drift. Choosing the right sensor means accounting for not only the load but everything that happens around it (daily cycles, unexpected shocks, or corrosive exposure). A well-chosen sensor won't just survive; it will perform predictably from the first cycle to the thousandth.

Industrial Scales and Specialized Weighing Systems

Selecting the appropriate load cells for industrial scales requires a thorough knowledge of each scale's function and environment.

Crane scales demand tension load cells capable of handling dynamic loads and potential sway. These cells must be robust enough to manage the stresses of lifting heavy materials while maintaining accuracy.

Floor scales, often used in warehouses and shipping centers, typically use compression load cells. These cells must accommodate high-capacity loads and resist side forces from forklifts or pallet jacks. Their design helps with stability and precision, even under uneven loading conditions.

Barrel scales present unique challenges due to their cylindrical shape and the need for precise measurements of liquid contents. Single-point load cells are often employed here, offering high accuracy in compact spaces. Their ability to maintain performance despite off-center loading makes them appropriate for this application.

Bench scales, common in laboratories and retail settings, require load cells that offer high sensitivity and repeatability. Shear beam or bending beam load cells are suitable choices, providing the necessary precision for tasks like ingredient measurement or package weighing.

Each of these scales operates under different conditions and requirements. Therefore, selecting the right load cell involves considering things like load direction, capacity, environmental conditions, and the specific demands of the application.

Mounting Assemblies: Stability Begins Here

The performance of a load cell is influenced by its mounting. Proper mounting assemblies are needed to maintain measurement accuracy and prolong the sensor's lifespan. Compression mounts are designed to handle vertical loads, so the force is applied directly through the load cell's axis. This alignment minimizes measurement errors and mechanical stress.

Tension mounts, on the other hand, are specialized for applications where the load is applied in a pulling manner. These assemblies often include features like clevises or rod ends to assist with proper alignment and reduce the introduction of side loads, which can affect accuracy.

In cases where standard mounting solutions are insufficient, custom-made assemblies offer customized solutions. These mounts are custom designed to fit specific applications, considering space constraints, load direction, and environmental conditions.

Custom assemblies mean that the load cell will operate within its optimal parameters, providing reliable and accurate measurements. Proper installation of these assemblies is imperative. Surfaces must be clean and level, and all components should be securely fastened. Misalignment or improper installation can lead to measurement errors, reduced accuracy, and potential damage to the load cell.

Wiring, Shielding, and Connectivity Considerations

The integrity of a load cell's signal is heavily dependent on its wiring and connectivity. Proper cabling helps see to it that the electrical signals generated by the load cell are transmitted accurately to the measurement system. Using shielded cables is essential to protect against electromagnetic interference, which can introduce noise and distort readings.

Shielding acts as a barrier, preventing external electromagnetic fields from affecting the signal. It's important to ground the shield at one end to avoid ground loops which can cause additional noise. The choice of connectors also matters in maintaining signal quality. Connectors should be compatible with the load cell and measurement system, providing secure and stable connections.

Cable length is another consideration. Longer cables can introduce resistance and potential signal degradation. In such cases, using sense wires can help compensate for voltage drops, maintaining the accuracy of the measurement.

Regular inspection of cables and connectors is recommended to identify any signs of wear or damage that could affect performance.

Hardware and Accessories That Complete the System

A complete load cell system includes more than just the sensor and its mounting. Hardware and accessories like junction boxes, eye bolts, and load buttons also figure into providing accurate and reliable measurements.

Junction boxes are used to connect multiple load cells, summing their outputs into a single signal for the measurement system. These boxes often include trim pots for balancing the signals from each load cell, assuring uniformity and accuracy across the system.

Eye bolts are commonly used in tension applications. They provide a secure point of attachment for the load. The bolts must be properly sized and rated for the expected loads to maintain safety and performance.

Load buttons are small, high-capacity compression elements that can be used in applications with limited space. They are designed to concentrate the load onto a specific point of the load cell, for accurate force transmission.

Selecting the appropriate accessories is necessary for the overall performance of the load cell system. Each component must be compatible with the load cell and the application's requirements to maintain measurement integrity.

Certifications, Compliance, and Industry Standards

Compliance with industry standards and certifications is a big consideration when selecting load cells. Adherence to recognized standards means the load cell meets specific performance and safety criteria. Environmental considerations also matter. Load cells used in hazardous environments may need to comply with standards like ATEX or IECEx, indicating suitability for explosive atmospheres.

Similarly, compliance with RoHS and REACH directives guarantees that the load cell does not contain hazardous substances. This is in keeping with environmental and health regulations. Identifying and verifying these certifications is imperative to make certain the load cell is appropriate for the intended application and complies with all relevant regulations.

Making the Right Call for Long-Term Success

Selecting the appropriate load cell involves a complete evaluation of the application's specific requirements. From knowing the nuances of different industrial scales to executing proper installation with suitable mounting assemblies, each decision impacts the system's accuracy and reliability.

Attention to wiring and connectivity safeguards signal integrity, while the inclusion of compatible hardware and accessories completes the system. Compliance with industry standards and certifications further assures that the chosen load cell meets all necessary performance and safety criteria.

By thoroughly assessing each aspect and aligning choices with the application's demands, one can confidently choose the right load cell that delivers precise, reliable measurements and supports long-term operational success.
