Types of Strain Gauges

March 13, 2020

By Dara Trent, Technical Content Director

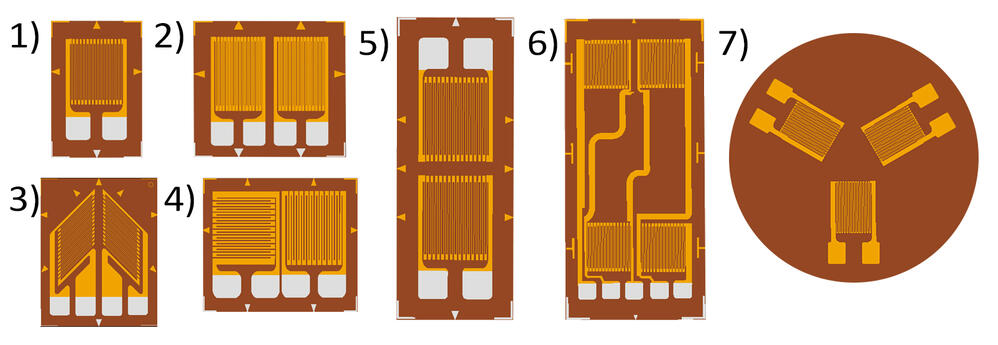

1) Linear strain gauges have one measuring grid and measure the strain in one direction. Only one direction of strain needs to be investigated.

2) Double linear strain gauges have two measuring grids arranged parallel to each other. Typical applications for these strain gauges include measurements on bending beams,

3) Shear strain gauges (V-shaped) have 2 measuring grids arranged at a 90° degree offset from each other. Typical applications for these strain gauges include measurements on torsion bars and determining shear stresses as they occur in shear beams in the area of neutral fibers.

4) 90º strain gauges (T-rosettes) have 2 measuring grids arranged at a 90° degree offset from each other. Typical applications for this strain gauge type include analysis of a biaxial stress state with known principal directions as well as measurements on tension and compression bars.

5) Half-bridge strain gauges are specially developed for manufacturing precision load cells which employ bending beam working principle. They are suitable for applications where the beam length is limited.

6) Full bridge strain gauges have 4 measuring grids, which are arranged so that each is offset to the next at an angle of 90°. Typical applications for full-bridge strain gauges include measurements on tension/compression bars and determining shear stresses as they occur in shear beams.

7) Rosette strain gauges are comprised of three measuring grids arranged at an angle of 0°/45°/90° or 0°/60°/120°. Rosettes are an appropriate choice for analyzing the biaxial stress state with unknown principal directions.
