410 Scale Display - Stainless Steel Model: 410

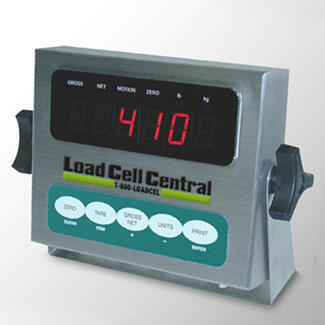

410 Scale Display - Stainless Steel

Load Cell Central's 410 scale display is identical to our model 422 except that it has a stainless steel enclosure, ideal for weighing applications in wet or washdown environments.  It is the only digital weight meter in its class that is fully programmable in the easy and flexible macro language Scale Basic™.  In addition to the built-in modes of operation, Scale Basic allows you to customize the operation of the 410 to meet your application requirements.  The Scale Basic language provides various commands and functions that include:  Math operations, I/O control, setpoints, timers, data entry, ID storage, message display, and program sequence control among others.  The 410 can be programmed via the keyboard or a PC using the optional software that greatly facilitates setup and programming.

Brochures

Features

  • 1" tall 6-digit LED display
  • Stainless steel enclosure for use in harsh environments
  • Selectable 5-point calibration for improved accuracy
  • 20-bit A/D with 60 samples/second conversion rate
  • Direct to PC/PLC output via RS232, RS485, or USB by using an adaptor
  • Powers up to 12 x 350 ? or 24 x 700 ? load cells
  • Digital port for relay control and remote operation
  • Easy setup
  • Toll Free Technical Support

Pre-Programmed Modes

  • MODE 0 - Normal
    Basic gross, tare and net weighing.
  • MODE 1 - Keyboard Tare
    Same as Mode 0 but tare weight is keyboard entered.
  • MODE 2 - Print Weight and Total
    Print multiple gross or net weights and keep a running total for job,
    lot, etc. Print accumulated gross, tare and net totals at the end.
  • MODE 3 - Print Weight With Subtotal and Total
    Same as Mode 2 but subtotals can be printed.
  • MODE 4 - Multi-Container/Axle Weighing
    Push the PRINT button to sequentially number and print a series of weighments. Push the TOTAL button to print and clear the total.
  • MODE 5 - Auto Weigh and Print (Auto Axle Weigh)
    Same as Mode 4 but printing is automatic when weights are placed
    on the scale. Provides traffic light control and trip level configuration.
  • MODE 6 - Auto Axle Weigh (Long Scales)
    Same as Mode 5 but previous axles are auto tared.
  • MODE 7 - Peak Hold Mode
    Display or print the "Peak" value for the gross or net weight.
  • MODE 8 - Over/Under Checkweigh
    Provides 3 TTL outputs and 2 setpoints to indicate "Over", "Under" and "Between" weight conditions.  Outputs can activate lights or alarms.
  • MODE 9 - Bulkweigh
    Provides setpoint entry and relay output to control fill process.  Remote start/stop operation with configurable 'Scale Empty' and 'Draft' weights.  Use for multiple drafts with subtotal and total printing.

Options

  • Quick-Disconnect Kit
    Amphenol type connector on the back of the indicator, includes mating connector
  • 12-28VDC Operational
    Low voltage power supply
  • Analog Output Module
    Fully isolated 0-10VDC or 4-20mA; 16-bit resolution
  • Relay Box
    4-channel external relay box model 8501
  • Relay Modules
    Input/output solid-state (AC/DC) relays
  • Clock Module
    Time and Date Clock
  • High speed (HS)
    100 samples/second conversion rate; high-speed process control applications
  • EZ-LINK™
    PC software; facilitates configuration and Scale Basic™ programming
  • IS Barriers
    Hazard location intrinsic safety barriers



Product Pricing

Part No.DescriptionPriceQty.
410Easy to Use 5-Key Scale Indicator, Stainless Steel Enclosure, NTEP Approved$799.00

Additional Options
Part No.DescriptionPriceQty.
OP400A/OAnalog Output Option, 0-5VDC, or 4-20mA$187.00

OP400A/O-R4Analog Output Option, 0-10VDC, or 4-20mA$187.00

OP400Q/DQuck Disconnect for the Scale Connection, Includes Mating Connector$125.00

OP400T/DTime & Date Option$84.00

8501External Relay Module in NEMA 4 Enclosure, 4-Channel, Relays not Included$280.00
