430 430 Scale Display

430 Scale Display

Features

  • 1" tall 6-digit LED display
  • Stainless steel enclosure suitable for use in washdown areas
  • Full numeric keypad for easy data entry
  • Selectable 5-point calibration for improved accuracy
  • 20-bit A/D with 60 samples/second conversion rate
  • Direct to PC/PLC output via RS232, RS485, or USB by using an adaptor
  • Powers up to 12 x 350 ? or 24 x 700 ? load cells
  • Digital port for relay control and remote operation
  • 32K RAM provides 500 ID storage (part, truck, etc.)
  • Easy setup
  • Toll Free Technical Support

Reviews

Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.DescriptionPriceQty.
430Batch Scale Controller, Stainless Steel Enclosure, NTEP Approved$1,053.00

Additional Options
Part No.DescriptionPriceQty.
OP400A/OAnalog Output Option, 0-5VDC, or 4-20mA$201.00

OP400A/O-R4Analog Output Option, 0-10VDC, or 4-20mA$201.00

OP400Q/DQuck Disconnect for the Scale Connection, Includes Mating Connector$125.00

OP400T/DTime & Date Option$107.00

8501External Relay Module in NEMA 4 Enclosure, 4-Channel, Relays not Included$311.00

add to cart

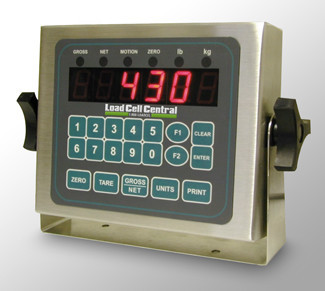

Load Cell Central's 430 scale controller is identical to our model 433 except that it has a stainless steel enclosure, ideal for weighing applications in wet or washdown environments.  It is an industrial digital weight indicator that outlasts and outperforms any indicator in its class.  The unique design of this indicator combines exceptional features with an affordable price.  It features a large bright 6-digit LED display and full numeric keyboard with large keys to enhance and simplify operator interface.  With its super fine sensitivity and 60 updates/second the LCC 430 delivers consistency and outstanding accuracy.  With standard and optional features, and built-in modes of operation, the LCC 430 is a very versatile indicator for use in various industries and applications that range from basic weighing and material testing to more complex process control weighing and batching.

The LCC 430 is fully programmable in an easy and flexible macro language called Scale Basic™.  In addition to the built-in modes of operation, Scale Basic allows you to customize the operation of the LCC 430 to meet your application requirements.  The Scale Basic language provides various commands and functions that include:  Math operations, I/O control, setpoints, timers, data entry, ID storage, message display, and program sequence control among others.  Programming the IDS 430 can be performed through the keyboard or a PC using the optional EZ-LINK™ software that greatly facilitates setup and programming.

Brochures

Pre-Programmed Modes

  • MODE 0 - Normal
    Basic gross, tare and net weighing.
  • MODE 1 – Fill to Setpoint
    Single setpoint fill with relay output control and weight print.
  • MODE 2 - Over/Under Checkweigh
    Provides 3 TTL outputs and 2 setpoints to indicate "Over", "Under" and "Between" weight conditions.  Outputs can activate lights or alarms.
  • MODE 3 – Vehicle Weigh-In/Out with Totals
    Weigh-In/Out program for up to 500 vehicles; Maintains running totals for each vehicle; provides reporting functions.
  • MODE 4 - Multi-Container/Axle Auto Weighing
    Auto weighs and prints each weight placed on the scale; each weight is sequentially numbered and accumulated; the total can be printed manually or automatically; provides for traffic light control.
  • MODE 5 - Auto Axle Weigh (Long Scales)
    Same as Mode 4 but previous axles are auto tared.
  • MODE 6 – ID Tare, Print and Total
    Provides tare entry and recall by ID; prints ID, sequence # and GTN weights; keeps running totals by ID; provides reporting functions.
  • MODE 7 - Peak Hold Mode
    Display or print the "Peak" value for the gross or net weight.

Options

  • Parts Counting
    Parts counting and weighing program
  • Quick Disconnect Kit
    Amphenol type connector on the back of the indicator includes a mating connector
  • 12-28VDC Operational
    Low voltage power supply
  • Analog Output Module
    Fully isolated 0-10VDC or 4-20mA; 16-bit resolution
  • Relay Box
    4-channel external relay box model 8501
  • Relay Modules
    Input/output solid-state (AC/DC) relays
  • Clock Module
    Time and Date Clock
  • High speed (HS)
    100 samples/second conversion rate; high-speed process control applications
  • EZ-LINK™
    PC software; facilitates configuration and Scale Basic™ programming
  • IS Barriers
    Hazardous location intrinsic safety barriers

 430 specification sheet
