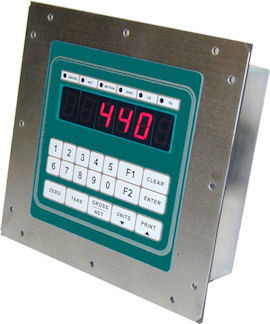

440PM Panel Mount Scale Display

Panel Mount Scale Display

Features

  • 1" tall 6-digit LED display
  • Stainless steel panel-mount enclosure suitable for use in washdown areas
  • Full numeric keypad for easy data entry
  • Selectable 5-point calibration for improved accuracy
  • 20-bit A/D with 60 samples/second conversion rate
  • Direct to PC/PLCoutput via RS232, RS485, or USB by using an adaptor
  • Powers up to 12 x 350 ? or 24 x 700? load cells
  • Digital port for relay control and remote operation
  • 32K RAM provides 500 ID storage (part, truck, etc.)
  • Easy setup
  • Toll-Free Technical Support

Reviews

Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.DescriptionPriceQty.
440PMPanel Mount Batch Weighing Indicator, NTEP Approved$1,670.00

Additional Options
Part No.DescriptionPriceQty.
OP400A/OAnalog Output Option, 0-5VDC, or 4-20mA$240.00

OP400A/O-R4Analog Output Option, 0-10VDC, or 4-20mA$240.00

OP400Q/DQuck Disconnect for the Scale Connection, Includes Mating Connector$135.00

OP440R/MRelay Board 8-Channel, Mounts Inside the 440 Enclosure$280.00

add to cart

Load Cell Central's 440PM scale controller is the same as our model 440 except that it's panel mountable.  The versatility of the LCC 440PM allows you to perform a number of tasks.  These tasks vary from simple weighing operations to more intricate activities such as overseeing batches, performing check-weighing, or handling bulk-loading. The LCC 440 comprises 16 programmable instruction sets (macros) and provides you with the capability of designing the printed record to satisfy your specific requirements.  Compact and lightweight, the system is contained within a durable stainless steel housing that can be either mounted on a panel or positioned in a control console.  Gaskets are provided to seal the unit to the panel or console in which it will be mounted. Featuring one-inch-high seven-segment LED characters, it offers enhanced readability from a greater distance compared to typical digital indicators. The brightness is adjustable to accommodate different conditions. The keyboard is equipped with sizable keys that provide both tactile and audible confirmation of input.


Covering tasks ranging from gross, tare, and net weighing to advanced setpoint event monitoring, applications are unlimited for the user who is capable of writing a BASIC program.  For those who prefer turnkey products, Load Cell Central offers a constantly growing number of application-specific programs at little to no additional charge, or we can write a custom program for your application.
The LCC 440PM can be programmed using a straightforward and versatile macro language known as Scale Basic™. In addition to the predefined modes of operation, Scale Basic enables you to customize the operation of the LCC 440PM to meet your application requirements. The Scale Basic language encompasses various instructions and functionalities, such as mathematical operations, I/O control, data entry, setpoints, ID storage, timers, message display, and program sequence control, among other capabilities. Programming the LCC 440PM can be performed through the keyboard or a PC using the optional EZ-LINK™ software that simplifies setup and programming.

Brochures

Pre-Programmed Modes

  • MODE 0 - Standard
    Fundamental measurement of tare, gross, and net weights.
  • MODE 1 – Setpoint Fill
    Filling to a singular setpoint with control over relay outputs and weight printing.
  • MODE 2 - Checkweigh (Over/Under)
    Furnishes 3 TTL outputs and 2 setpoints for signaling "Over", "Under" and "Between"  weight conditions. These outputs are capable of triggering lights or alarms.
  • MODE 3 – Weighing-In/Out of Vehicles with Cumulative Summaries
    Weigh-In/Out program designed for a maximum of 500 vehicles; keeps ongoing totals for each vehicle; offers reporting capabilities.
  • MODE 4 - Automatic Weighing for Multiple Containers/Axles
    Automatically measures and prints each weight positioned on the scale; each weight is assigned a sequential number and added cumulatively; the overall total can be printed manually or be automatically generated; includes features for traffic light control.
  • MODE 5 - Automated Axle Weighing for Extended Scales
    Similar to Mode 4, prior axles are automatically tared.
  • MODE 6 – Identification (ID) Tare, Printing, and Summation
    Offers tare input and retrieval based on ID; prints ID, sequence number, and GTN weights; maintains ongoing totals by ID; delivers reporting capabilities.
  • MODE 7 - Mode for Holding the Peak Value
    Show or print the maximum gross or net weight identified.

Options

  • Parts Counting
    Parts counting and weighing program.
  • 12-28VDC Operational
    Low voltage power supply.
  • Module for Analog Output
    Complete isolation with a range of 0-10VDC or 4-20mA; 16-bit resolution
  • External Relay Box
    4-channel external relay box model 8501.
  • Relay Board
    Internal 8-channel relay board.
  • Relay Modules
    Input/output solid-state (AC/DC) relays.
  • Clock Module
    Time and Date Clock.
  • High-speed (HS)
    100 samples/second conversion rate; high-speed process control applications.
  • EZ-LINK™
    PC software; facilitates configuration and Scale Basic™ programming.
  • IS Barriers
    Intrinsically safe barriers designed for use in hazardous locations.
  • 440 specification sheet
