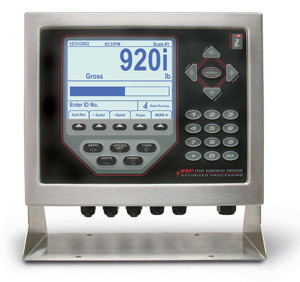

Scale Batching Controller Model: 920i

Scale Batching Controller

The 920i delivers more features, more programmability, and more power to your process.  With its performance-driven architecture and customized display features, the 920i can take your weighing system further.  The 920i offers the versatility of the universal, deep, panel mount, or wall-mounted style enclosures.

While graphic icons and messages show setpoint and function status, up to ten different screens can be programmed to change with any given process.  The multi-channel display feature shows the weight on an individual scale or a combination of totalized scales.  When used in batching/mixing applications, one 920i is capable of handling multiple scales, flow temperatures, and pulse inputs.  It can control hundreds of I/O setpoints, queuing such things as gates, valves, and conveyors, often eliminating the need for a PLC and costly programming.  Utilizing the complete database capabilities of the 920i allows you to store all your related data and files.

Load Cell Central has deployed the 920i for a variety of applications such as:

  • Finding the center of gravity of items being transported to the International Space Station
  • Monitoring 8 scales in a liquid refrigerant recycling facility
  • Displaying 10 load cell weights aiding in the manufacture of luxury yachts
  • Kiosk scale station for a batch-out application for two scales loading out to tractor trailers, with USB data logging and receipt printing

See the 920i brochure for full specifications.

Brochures

Features

  • Large backlit 4.6" W x 3.4" H LCD display
  • 60 configurable operator prompts
  • Display up to 4 Legal for Trade scales on one screen or up to 8 for non-NTEP applications
  • Five soft keys for user-defined functions
  • Ten programmable display screens
  • Millivolt calibration, 5-point linearization and geographical calibration
  • NEMA 4X/IP66 stainless steel enclosure
  • Selectable A/D sampling rate up to 960/second
  • 100 setpoints, 30 configurable setpoint types
  • Two slots for option cards
  • Peak hold
  • Rate of change
  • Toll Free Technical Support 1-800-LOADCEL

Options

  • Single- and dual-channel A/D cards
  • Single- and dual-channel analog output 0-10VDC, 0-20mA, 4-20mA
  • Low voltage power supply 9-36VDC
  • 230VAC operational version
  • 1MB NV RAM memory
  • Digial I/O, 24-channel TTL output
  • Pulse input
  • Serial port card, dual channel, RS-232 and RS-485
  • Analog input +/-10VDC, 0-20mA and thermocouple
  • Ethernet TCP/IP10/100 Base-T module (internal)
  • Ethernet TCP/IP wireless LAN card 802.11 B/G
  • Ethernet IP (specifically for A-B PLC)
  • Profibus DP interface
  • DeviceNet interface
  • ControlNet interface
  • 2 and 6 slot expansion card
  • Sun shield
  • Fiber-optic board, installed in 920i
  • Start/Stop controls
  • Clear proctective overlay (package of 5)

There are many other options - Please see the 920i specification sheet for a full list.






load cell batch controller    Universal, Panel Mount, and Wall Mount Enclosures



Load cell center of gravity system  Customized Center of Gravity Load Cell System



920i with custom load cells  920i with custom load cells, bar graph and weight display, and label printer with custom formatting

Product Pricing

Part No.DescriptionPriceQty.
920i (s)A/DSingle Channel Scale Indicator, Universal Enclosure, 115VAC Operational$1,995.00

920i (d)A/D2-Channel Scale Indicator, Universal Enclosure, 115VAC Operational$2,095.00

920i DC (s)A/DSingle Channel Scale Indicator, Universal Enclosure, 12-36VDC Operational$2,095.00

920iD (s)A/DSingle Channel Scale Indicator, Deep Enclosure, 115VAC Operational$2,195.00

920iD (d)A/D2-Channel Scale Indicator, Deep Enclosure, 115VAC Operational$2,295.00

920iD-USB (s)A/DSingle Channel Scale Indicator, Deep Enclosure, USB Option, 115VAC Operational$2,295.00

920iD-USB (d)A/D2-Channel Scale Indicator, Deep Enclosure, USB Option, 115VAC Operational$2,395.00

920iP-USB (s)A/DSingle Channel Scale Indicator, Panel Mount Enclosure, USB Option, 115VAC Operational$2,095.00

920iP-USB (d)A/D2-Channel Scale Indicator, Panel Mount Enclosure, USB Option, 115VAC Operational$2,195.00

Additional Options
Part No.DescriptionPriceQty.
(s) A/D cardSingle Channel A/D Scale Input Card$260.00

(d) A/D card2-Channel A/D Scale Input Card$410.00

(s) A/OSingle Channel Analog Output Card 0-10V or 0-20mA$300.00

(d) A/O2-Channel Analog Output Card 0-10V or 0-20mA$525.00

1Meg Card1Meg Card Memory Module$260.00

Ethernet CardEthernet TCP/IP Interface Card, Embedded Device Server 10/100base$400.00

2-OS-Exp-PExpansion Board w/2 Option Slots for 920i Deep and Panel Mount Enclosures$260.00
