Model WDOS: Panel Mount Batching Controller

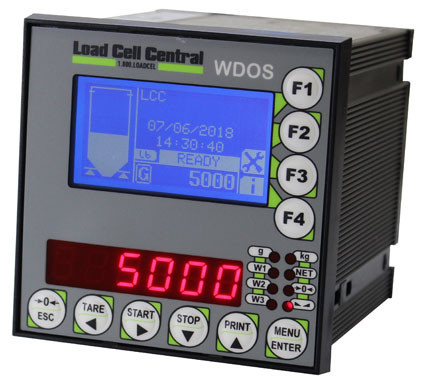

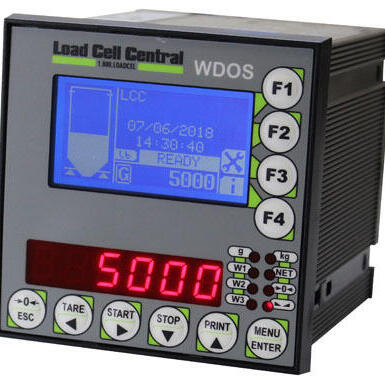

Panel Mount Batching Controller

The WDOS panel mount batching scale controller has multiple weighing modes:  The "Base" mode for basic weighing, "Load" and "Unload" modes for applications such as bag filling, bulk tank filling or discharging, and the "3-6-14 Ingredient" mode for batch weighing recipes.

Pre-Programmed Weigh Modes

  • BASE MODE - Normal
    Basic gross, Tare and net weighing / Parts counting / Totalizer / Checkweighing
  • LOAD MODE – Fill to Setpoint
    Single ingredient setpoint fill with relay output control and onboard data logging.
  • UNLOAD MODE - Discharge to Setpoint
    Unload to setpoint, relay control and onboard data logging
  • Up to 3, 6, or 14 INGREDIENTS MODE– Batch Weighing Scale
    Automatic or manual batching scale, relay control, store 99 formulas, and on-board data logging.

Features

  • Panel mount enclosure
  • 12 to 24VDC operational
  • A/D converter 24 bit (16,000,000 points), 4800Hz
  • RS232, RS485 serial output
  • 5 relay outputs (4 when ordered with analog output option)
  • 3 digital inputs (2 when ordered with analog output option)

Options

  • Analog output - 16 bit isolated
    0-20mA, 4-20mA, 0-10V, 0-5V, ±10V, ±5V
  • IP65 Front panel gasket
  • Data transfer via serial port to PC (includes database software)
  • Storage of data to USB thumb drive  (includes database software)
  • See the brochure for a complete list of options

Ethernet & Fieldbus Communication Options

  • CANopen
  • DeviceNet
  • Profibus DP
  • Modbus/TCP
  • Ethernet TCP/IP accessible via web browser
  • Ethernet IP
  • Profinet IO

Brochures

Optional Logging

Software Information



Product Pricing

Part No.DescriptionPriceQty.
WDOS-BWeight indicator with "BASE" program installed, panel mount enclosure$719.00

WDOS-CWeight indicator with "LOAD" program installed, panel mount enclosure$719.00

WDOS-SWeight indicator with "UNLOAD" program installed, panel mount enclosure$719.00

WDOS-3Batching indicator with "3 INGREDIENT" program installed, panel mount enclosure$719.00

WDOS-6Batching indicator with "6 INGREDIENT" program installed, panel mount enclosure$1,074.00

WDOS-14Batching indicator with "14 INGREDIENT" program installed, panel mount enclosure$1,429.00

Additional Options
Part No.DescriptionPriceQty.
OPZW96X96IP65IP65 front panel sealing gasket$35.00

OPZW1ANALOGAnalog output: 0-20mA, 4-20mA, 0-10V, 0-5V, ±10V, ±5V$70.00

OPZWDATIPCData transfer via serial port to PC, Logging DB software included$95.00

OPZWUSBWDOSStorage of data on USB Pen Drive (included) by USB, Logging DB software included$140.00

OPZW1CAWDOSCANopen protocol$150.00

OPZW1DEWDOSDeviceNet protocol$150.00

OPZW1PRWDOSProfibus DP protocol$150.00

OPZW1ETIPWDOSEthernet/IP protocol (ethernet port)$175.00

OPZW1ETTCPWDOSEthernet TCP/IP protocol (ethernet port), view on web browser via computer or smartphone$175.00

OPZW1MBTCPWDOSModbus/TCP protocol (ethernet port)$175.00

OPZW1PNETIOWDOSProfinet IO protocol (ethernet port)$175.00
