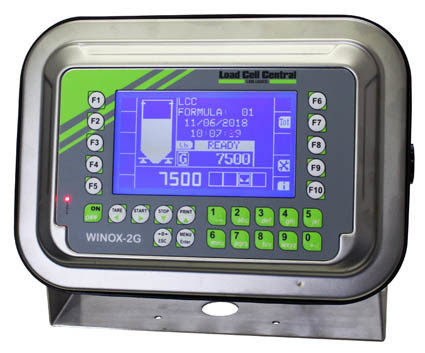

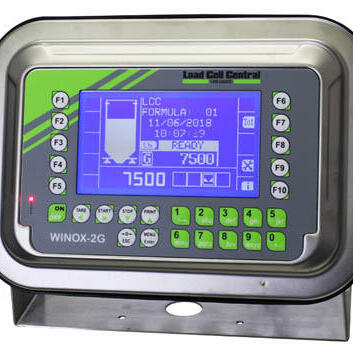

WINOX2G Weight Batching Controller

Weight Batching Controller

The WINOX2G weight controller has multiple weighing modes pre-installed:  The "Base" mode for basic weighing, "Load" and "Unload" modes for applications such as bag filling, bulk tank filling or discharging, and the "3-6-14 Ingredient" mode for batching recipes.

Features

  • IP68 Stainless steel enclosure
  • 12 to 24VDC operational
    (120VAC wall transformer provided on "P" type enclosure)
  • A/D converter 24 bit (16,000,000 points), 4800Hz
  • RS232, RS485 serial output
  • 5 relay outputs
  • 3 digital inputs (2 when ordered with analog output option

Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.DescriptionPriceQty.
    WINOX2G-BWeighing indicator with "BASE" program installed, wall or desktop mount enclosure$1,180.00

    WINOX2G-CWeighing indicator with "LOAD" program installed, wall or desktop mount enclosure$1,180.00

    WINOX2G-SWeighing indicator with "UNLOAD" program installed, wall or desktop mount enclosure$1,180.00

    WINOX2G-3Batching indicator with "3 INGREDIENT" program installed, wall or desktop mount enclosure$1,180.00

    WINOX2G-6Batching indicator with "6 INGREDIENT" program installed, wall or desktop mount enclosure$1,535.00

    WINOX2G-14Batching indicator with "14 INGREDIENT" program installed, wall or desktop mount enclosure$1,890.00

    Additional Options
    Part No.DescriptionPriceQty.
    OPZW1ANALOGAnalog output: 0-20mA, 4-20mA, 0-10V, 0-5V, ±10V, ±5V$70.00

    QPanel mount enclosure with removable terminal block$25.00

    OPZWDATIPCData transfer via serial port to PC, Logging DB software included$95.00

    OPZWUSB68Storage of data on USB Pen Drive (included) by USB IP68 sealed port built-in, Logging DB software included$195.00

    OPZW1CACANopen protocol$175.00

    OPZW1DEDeviceNet protocol$175.00

    OPZW1PRProfibus DP protocol$195.00

    OPZW1ETIP68Ethernet/IP protocol (IP68 ethernet port)$255.00

    OPZW1ETTCP68Ethernet TCP/IP protocol (IP68 ethernet port), view on web browser via computer or smartphone$255.00

    OPZW1MBTCP68Modbus/TCP protocol (IP68 ethernet port)$255.00

    OPZW1PNETIO68Profi net IO protocol (IP68 ethernet port)$255.00

    add to cart

    Pre-Programmed Weighing Modes

    • BASE MODE - Normal
      Basic gross, Tare and net weighing / Parts counting / Totalizer / Checkweighing
    • LOAD MODE – Fill to Setpoint
      Single ingredient setpoint fill with relay output control and onboard data logging.
    • UNLOAD MODE - Discharge to Setpoint
      Unload to setpoint, relay control and onboard data logging
    • Up to 3, 6, or 14 INGREDIENTS MODE– Batching Scale
      Automatic or manual batch weighing scale, relay control, store 99 formulas, and on-board data logging.

    Options

    • Analog output - 16 bit isolated
      0-20mA, 4-20mA, 0-10V, 0-5V, ±10V, ±5V
    • Panel mount ("Q" type enclosure)
    • Data transfer via serial port to PC (includes database software)
    • Storage of data to USB thumb drive  (includes database software)
    • See the brochure for a complete list of options

    Ethernet & Fieldbus Communication Options

    • CANopen
    • DeviceNet
    • Profibus DP
    • Modbus/TCP
    • Ethernet TCP/IP accessible via web browser
    • Ethernet IP
    • Profinet IO
