Model ICA Series Load Cell Amplifier

Series Load Cell Amplifier

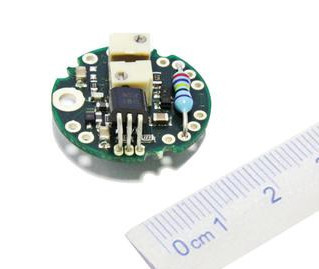

The ICA is designed for OEM customers needing a compact, economical, and easy to use load cell amplifier.  When installed in the optional ILE inline stainless steel enclosure it converts a standard load cell to a load cell with 0-5VDC, 0-10VDC, or 4-20mA output.

Features

  • Small size 19.5mm diameter, 7.6mm height
  • High speed 1,000 Hz
  • Fast and easy calibration
  • User selectable span resistor
  • High noise immunity and reverse voltage protection
  • Optional stainless steel in-line enclosure ILE
  • Toll Free Technical Support

Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.DescriptionPriceQty.
    ICA1H3 Wire - 0.1 to 10.1VDC Output, Load Cell Signal Conditioner, 13-28VDC Operational$87.00

    ICA2H3 Wire 0.1 to 5.1VDC Output, Load Cell Signal Conditioner, 8.5-28VDC Operational$87.00

    ICA3H4 Wire ±10VDC Output, Load Cell Signal Conditioner, ±13 to ±15VDC Operational$87.00

    ICA4H3 Wire 4-20mA Output, Load Cell Signal Conditioner, 10 to 28VDC Operational$87.00

    ICA6H3 Wire ±10VDC Output, Load Cell Signal Conditioner, 14 to 18VDC Operational$114.00

    ICA5S2 Wire 4-20mA Output, Load Cell Signal Conditioner, 7.5-28VDC Operational$99.00

    Additional Options
    Part No.DescriptionPriceQty.
    ILEIn-Line Housing for ICA Amplifiers, Stainless Steel$91.00

    add to cart

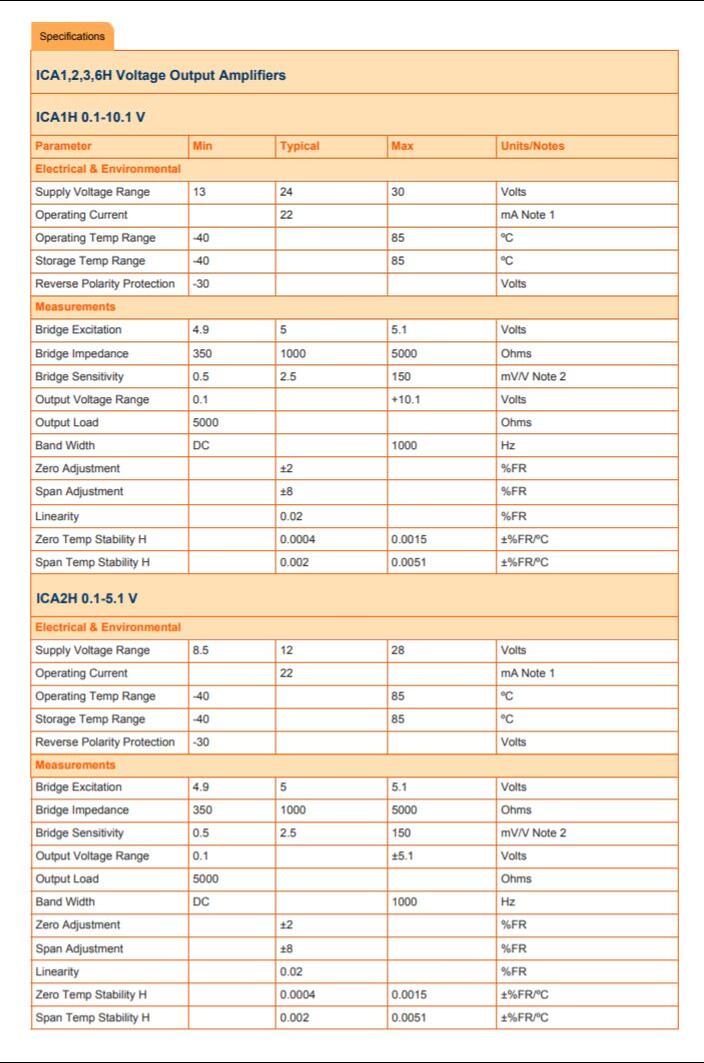

    ICA 1 and 2 specificationsICA 3 and 6 specsICA 4 adn 5 specificationsICA 5A specifications



    High Stability ICAH
    ICA1H 0-10V 3 wire
    ICA2H 0-5V 3 wire
    ICA3H ± 10V 4 wire
    ICA4H 4-20mA 3 wire
    ICA6H ± 10V 3 wire

    Industrial Stability ICAS
    ICA5S 4-20mA 2 wire

    ATEX Intrinsically Safe
    ICA5ATEX 4-20mA 2 wire



    Brochures



    Associated Products

    DSJ1, DSC field attachable board

    Model: ILE

     In-line stainless steel enclosure for the ICA load cell amplifiers.
