Model LCD20 Load Cell Amp, 0-10V & 4-20mA Analog Outputs

 Load Cell Amp, 0-10V & 4-20mA Analog Outputs

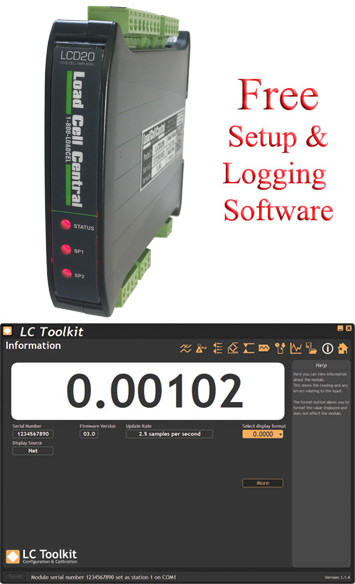

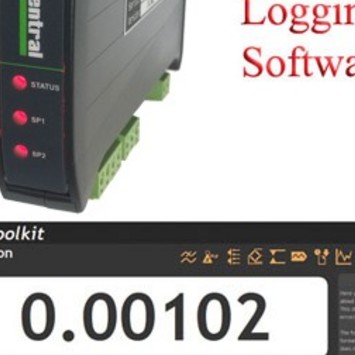

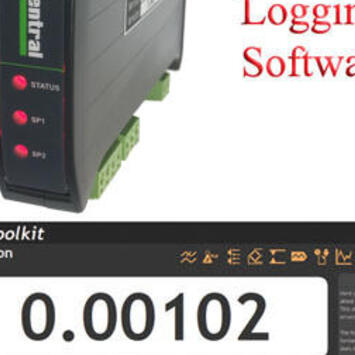

The LCD20 load cell amplifier provides 5VDC excitation for up to four 350 ohm load cells wired in parallel, and outputs either 0-10Vdc or 4-20mA.  This load cell amp is 9-32VDC operational and DIN rail mounted, making it ideal for weighing systems that use a PLC as the load cell amp can be mounted in the same cabinet as the PLC.  The LCD20 is provided standard with two relay outputs with user-configurable set points, and two digital inputs that can be programmed to display Gross, Net, Peak, Valley,  Snap-record a reading for calling up at a later time, or to Zero the analog output.

Features

  • 0-10VDC or 4-20mA analog outputs
  • Easy setup using the free software
  • 2 Relay outputs and 2 digital inputs
  • Peak and valley capture
  • Adjustable filtering
  • 9 to 32 VDC operational
  • Up to 10 point linear calibration capability
  • Toll-Free technical support



Reviews

There are no reviews yet for this product. Write a Review

add to cartProduct Pricing

Part No.DescriptionStatusPriceQty.
LCD20Din Rail Mount Load Cell Amp, PC Setup and Calibration, 24VDC Operational1 available$425.00
increase
decrease
Additional Options
Part No.DescriptionStatusPriceQty.
PGM1USB Programming Cable for LCD20 Load Cell Amp4 available$54.00
increase
decrease
LP2Handheld Programmer for LCD20 Load Cell AmpCall for Lead Time$345.00
increase
decrease
PSC-24-015 24VDC, .63A, 15W Power Supply, 85-264 VAC Universal Input, Din Rail MountCall for Lead Time$102.00
increase
decrease

add to cart



The free LC Toolkit software is used to set up and calibrate the load cell amp.  Setting up your weighing system is done using the optional PGM1 USB computer interface cable, or by using the optional LP2 handheld programmer.  Using the LC Toolkit program, the calibration can be done either by performing a 'live' calibration, by applying a known weight to the scale system, or by entering into the program the mV/V data from the load cell for a theoretical calibration.  For applications requiring higher accuracy, a multi-point linear calibration can be done with up to 10 data points.  All the settings of the load cell amp such as calibration, filtering, relays set points, and digital inputs can be saved to a file, which allows you upload them to another LCD20 in the future if something were to happen to the original amplifier.  The software also has graphing and logging capabilities, which allows you to analyze your weighing data.

Brochures

Downloads

LCD20 specifications

Options

load cell software cable load cell amplifier programmer

PGM1
USB Communication Cable

LP2
Remote Handheld Programmer
