Model OM-13 Load Cell Signal Conditioner 4-20mA Output

Load Cell Signal Conditioner 4-20mA Output

The Model OM-13 is a self-contained, AC-powered signal conditioner for load cells / scales. It contains a precision differential isolation amplifier with filtered output and a highly regulated, low noise, adjustable output bridge excitation source. The unit is completely encapsulated for use in rugged environments.

NOTE: Unless otherwise noted, specifications apply after one hour warm-up at 25°C ambient. Temperature Coefficients apply between 0°C and 55°C ambient.


  • Complete Strain Gage Load Cell Signal Conditioner
  • Isolated 4-20 mA or 0-20 mA Output
  • Output Capable of Driving 1000 ohm Loop
  • Bridge Balance with 80% Tare Offset Capability
  • High Gain Amplifier; Can Accept Full Scale Live Load Signals as Low as 5 mV and Provide 16 mA Output Span
  • Excitation Supply Capable of DrivIng Four Load Cells
  • AC Powered
  • Rugged Epoxy Encapsulated Design


There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.DescriptionPriceQty.
    OM-13-1150-20mA or 4-20mA Output Load Cell Amplifier, 115VAC Operational$548.00

    Additional Options
    Part No.DescriptionPriceQty.
    OMDINDin-Rail Mounting Kit$25.00

    add to cart

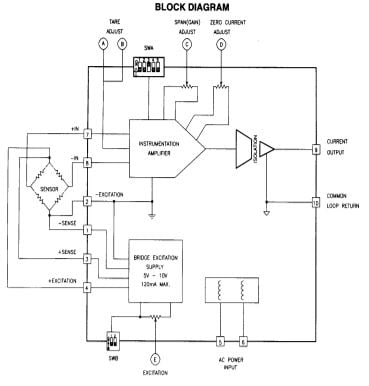

    OM-13 diagram


    Weighing with Load Cells

    Process Control Add-on Loops

    Can Be Used With All Types of Low Output Sensors

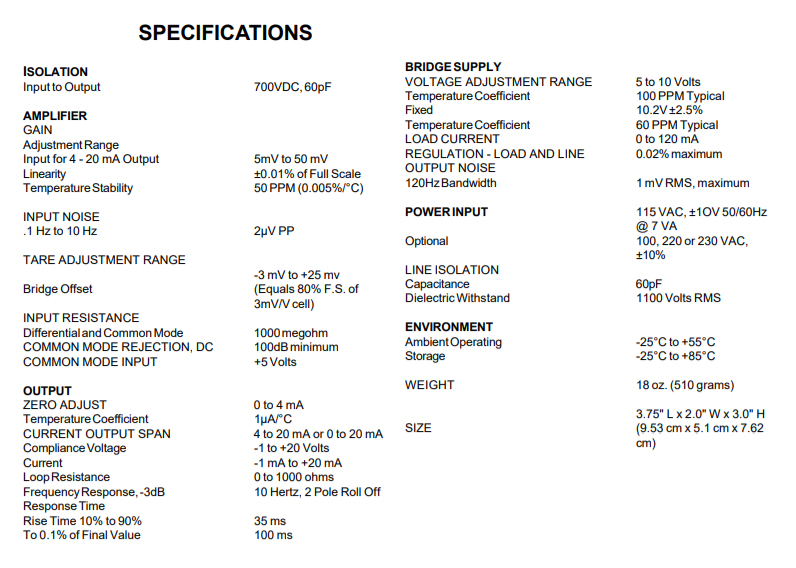

    OM-13 specifications
