Model OM-26 Load Cell Amplifier / Signal Conditioner

Load Cell Amplifier / Signal Conditioner

The OM-26 load cell amplifier is DIN Rail mounted, self-contained DC powered module designed for load cell, strain gage, or single ended use. The OM-26 contains a precision instrumentation amplifier, filtered output and a built- in 10V excitation supply capable of driving a 350 ohm bridge. The 0 to 30mV input range makes it compatible with most strain gage based load cell or pressure transducer outputs. The OM-26 provides an output of 4-20mA. Connections are made via easily accessible screw clamp terminal blocks. Zero and Span adjustment potentiometers are located externally as well for easy access.

Features

  • Low Cost
  • Din Rail Mount
  • Load Cell or Single Ended Application 4-20mA



Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.DescriptionPriceQty.
    OM-26Load Cell Amplifier 4-20mA Output, 24VDC Operational, Powers a Single 350Ω Load Cell$230.00

    add to cart

    Brochures

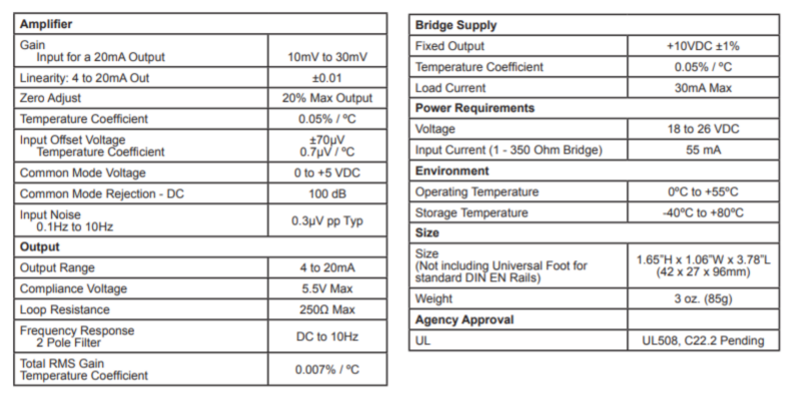

     OM-26 specifications

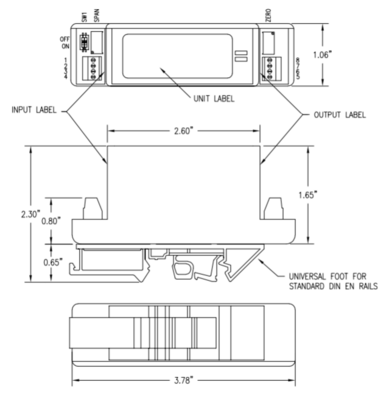

     OM-26 diagramOM-26 internal diagram
