Model OM-4 Load Cell Signal Conditioner 4-20mA

The model: OM-4 is a self contained, DC powered signal conditioner for bridge type instrumentation.  It contains a precision differential amplifier with filtered output and a highly regulated, low noise, adjustable output bridge excitation source.  What sets the OM-4 apart is a Bridge Balance pot and high gain capability to accurately condition load cell weighing systems with large tare offsets and small live load signals. The unit is completely encapsulated for use in rugged environments.

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Description	Status	Price	Qty.
OM-4	4-20mA Output Load Cell Signal Conditioner, 10 to 36VDC Operational	Call for Lead Time	$535.00	Quantity
Additional Options
Part No.	Description	Status	Price	Qty.
OMDIN	Din-Rail Mounting Kit	Typical Lead Time: 1 Week	$25.00	Quantity

Brochures

• OM-4 Brochure 148kb

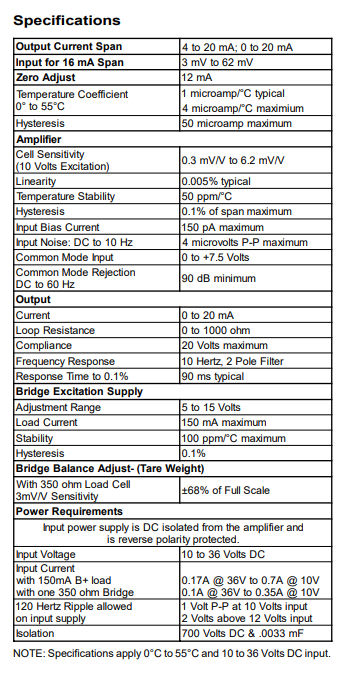

Features

• Complete Strain Gage Bridge Signal Conditioner
• 4-20 mA or 0-20 mA Output
• Output Capable of Driving 1000 ohm Loop
• Bridge Balance with 68% Tare Offset Capability
• High Gain Amplifier; Can Accept Live Load Signals as Low as 3 mV and Provide 16 mA Output Span
• Sufficient Excitation Current for Five Load Cells
• Powered by 10 to 36 VDC Unregulated
• Rugged Epoxy Encapsulated Design

Applications

• Weighing with Load Cells
• Process Control Add-on Loops
