Model TLB4 Load Cell Weight Transmitter

Control your load cell system with the TLB4 weight transmitter.  Standard with 3 relay logic outputs, 2 digital inputs, RS485, optionally with analog output or a variety of fieldbus or ethernet options for communication to a PLC or your network.  With four individually monitored channels this weight transmitter allows connection of up to four load cells eliminating the neAXed for a load cell junction box and displaying the total weight on all the connected load cells.

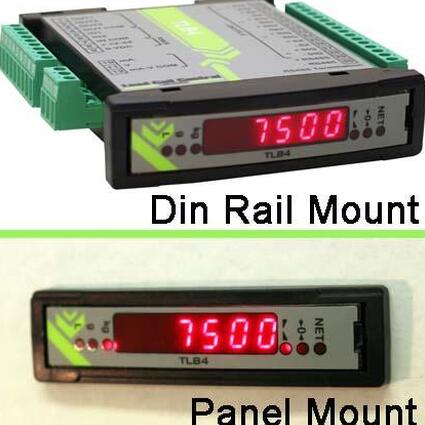

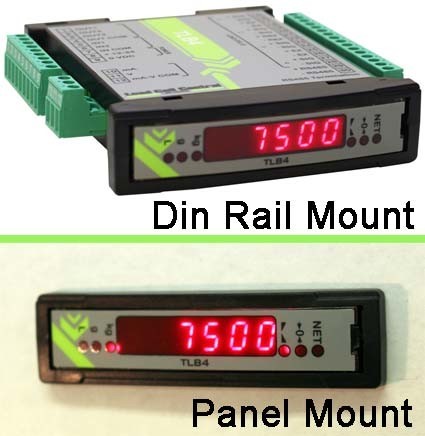

The TLB4 is compact in size and is din-rail or panel mountable making it ideal for existing applications.

 Features

• Din-rail or panel mount
• 12 to 24VDC operational
• RS485 Modbus RTU output
• 3 relay logic outputs
• 2 digital inputs

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Description	Status	Price	Qty.
TLB4RS485	Weight Transmitter, RS485 output	Call for Lead Time	$455.00	Quantity
TLB4	Weight Transmitter, 16 bit analog & RS485 output	10 available	$480.00	Quantity
TLB4CANOPEN	Weight Transmitter with CANopen port, and RS485	Typical Lead Time: 1 Week	$575.00	Quantity
TLB4DEVICENET	Weight Transmitter with DeviceNet port, and RS485	Typical Lead Time: 1 Week	$575.00	Quantity
TLB4CCLINK	Weight Transmitter with CC-LINK port, and RS485	Typical Lead Time: 1 Week	$695.00	Quantity
TLB4PROFIBUS	Weight Transmitter with PROFIBUS DP port, and RS485	Call for Lead Time	$620.00	Quantity
TLB4MODBUSTCP	Weight Transmitter with Modbus/TCP port, and RS485	Call for Lead Time	$680.00	Quantity
TLB4ETHETCP	Weight Transmitter with Ethernet TCP/IP port (accessible via web browser), and RS485	Call for Lead Time	$620.00	Quantity
TLB4ETHEIP	Weight Transmitter with Ethernet IP port, and RS485	20 available	$745.00	Quantity
TLB4PROFINETIO	Weight Transmitter with 2x PROFINET IO ports, and RS485	Call for Lead Time	$745.00	Quantity
TLB4ETHERCAT	Weight Transmitter with 2x EtherCAT ports, and RS485	Typical Lead Time: 1 Week	$695.00	Quantity
TLB4POWERLINK	Weight Transmitter with 2x POWERLINK ports, and RS485	Typical Lead Time: 1 Week	$695.00	Quantity
TLB4SERCOS	Weight Transmitter with 2x SERCOS III ports, and RS485	Typical Lead Time: 1 Week	$695.00	Quantity
Additional Options
Part No.	Description	Status	Price	Qty.
PSC-24-015	24VDC, 1.25A, 15W Power Supply, 85-264 VAC Universal Input, Din Rail Mount (Will Power 2 Units)	Call for Lead Time	$102.00	Quantity

Ethernet & Fieldbus Communication Options

• CANopen
• DeviceNet
• CC-LINK
• Profibus DP
• Modbus/TCP
• Ethernet TCP/IP accessible via web browser
• Ethernet IP
• Profinet IO
• EtherCAT
• Powerlink
• Sercos III

Brochures

• TLB4 Brochure
• TLB4 User Manual
