Model TLE: Load Cell Amplifier

Load Cell Amplifier

*Eliminate the load cell junction box.

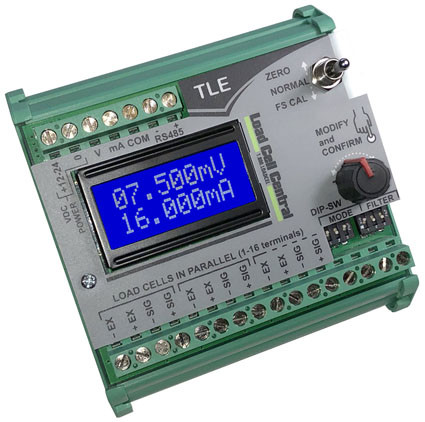

The TLE load cell signal conditioner is the quickest and easiest device of its kind to set up and calibrate.  Simply set the no-load analog output, then flip a switch and adjust the full-scale output with the rotary encoder and you are all set.  The LCD display shows mV input from the load cell/scale, and the analog output going to your PLC or data acquisition system (does not display weight readings).  This allows calibration and troubleshooting of the amplifier without the need for an electrician's multimeter.

Features

  • Din-rail mount
  • Easy setup
  • Adjustable filtering
  • 12 to 24VDC operational
  • The display shows mV input and analog output

Reviews

There are no reviews yet for this product. Write a Review

add to cartProduct Pricing

Part No.DescriptionStatusPriceQty.
TLELoad Cell Amplifier1 available$320.00
increase
decrease
Additional Options
Part No.DescriptionStatusPriceQty.
CASTLPG9Enclosure for the TLE with transparent lid, sealed to IP67 1 available$102.00
increase
decrease
PSC-24-01524VDC, 1.25A, 15W Power Supply, 85-264 VAC Universal Input, Din Rail Mount (Will Power 2 Units)Call for Lead Time$102.00
increase
decrease

add to cart

Versatile and compact, the 12-24VDC powered and DIN rail mounted TLE fits easily inside existing electrical enclosures or it can be purchased with an optional enclosure with a transparent lid.  Not only does the TLE output 0-20mA, 4-20mA, 0-10V, 0-5V, ±10V, or ±5V, but it also has a RS485 ModBus output (outputs 0-200,000 counts for 0-10V).

*The TLE amplifier has connections for up to 4 load cells in parallel eliminating the need for a load cell junction box in applications such as vessel weighing with self-leveling materials such as a liquid or slurry (no corner adjustments).  For applications requiring corner trimming, a load cell junction box can be used and wired directly to the TLE amplifier.



Brochures

tle load cell amplifier specifications

tle load cell amplifier diagram
