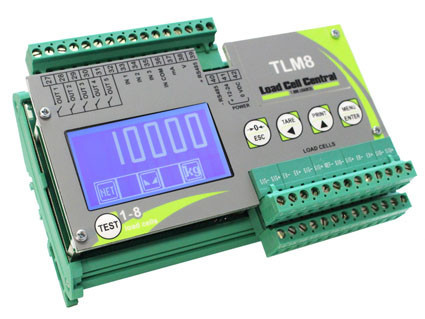

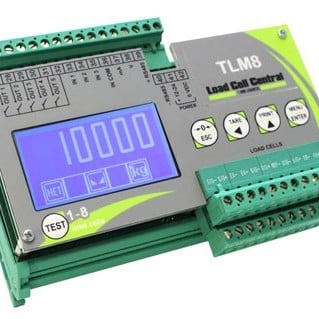

Model TLM8 Load Cell Transmitter

Load Cell Transmitter

The TLM8 load cell transmitter is ideal for basic weighing systems as well as industrial applications.  The unit communicates to a PLC and other devices via analog output, optional ethernet, or fieldbus communication protocol.

Features

  • Din-rail mount
  • 12 to 24VDC operational
  • 4-20mA or 0-10V analog output
  • RS485 Modbus RTU output
  • 5 relay outputs
  • 3 digital inputs

Reviews

Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.DescriptionPriceQty.
TLM8Load Cell Transmitter, 16 bit analog & RS485 output$630.00

TLM8CANOPENLoad Cell Transmitter with CANopen port, analog output, and RS485$725.00

TLM8DEVICENETLoad Cell Transmitter with DeviceNet port, analog output, and RS485$725.00

TLM8CCLINKLoad Cell Transmitter with CC-LINK port, analog output, and RS485$785.00

TLM8PROFIBUSLoad Cell Transmitter with PROFIBUS DP port, analog output, and RS485$725.00

TLM8MODBUSTCPLoad Cell Transmitter with Modbus/TCP port, analog output, and RS485$780.00

TLM8ETHETCPLoad Cell Transmitter with Ethernet TCP/IP port (accessible via web browser), analog output, and RS485$805.00

TLM8ETHEIPLoad Cell Transmitter with Ethernet IP port, analog output, and RS485$780.00

TLM8PROFINETIOLoad Cell Transmitter with 2x PROFINET IO ports, analog output, and RS485$780.00

TLM8ETHERCATLoad Cell Transmitter with 2x EtherCAT ports, analog output, and RS485$785.00

TLM8POWERLINKLoad Cell Transmitter with 2x POWERLINK ports, analog output, and RS485$785.00

TLM8SERCOSLoad Cell Transmitter with 2x SERCOS III ports, analog output, and RS485$785.00

Additional Options
Part No.DescriptionPriceQty.
CASTLG8PG9Enclosure for the TLM8 with transparent lid, sealed to IP67 $135.00

PSC-24-01524VDC, 1.25A, 15W Power Supply, 85-264 VAC Universal Input, Din Rail Mount (Will Power 2 Units)$102.00

add to cart



This weighing transmitter has the features of a digital load cell system: The TLM8's connections for up to 8 load cells eliminates the need for a junction box because it has digital trimming of the individual load cells (no trim pots).  On-board diagnostics of the scale system shows the mV output from each channel, percentage of load on each active channel, and will indicate any open circuits in load cells and leads.  This feature is a big time saver for new weighing systems because it allows the installer to see if the load is evenly distributed between the load cells to assess whether further leveling is required.

*For applications where the load cell cables are not long enough to reach the TLM8, a standard load cell junction box can still be used and a single cable connected to the transmitter.

Ethernet & Fieldbus Communication Options

  • CANopen
  • DeviceNet
  • CC-LINK
  • Profibus DP
  • Modbus/TCP
  • Ethernet TCP/IP accessible via web browser
  • Ethernet IP
  • Profinet IO
  • EtherCAT
  • Powerlink
  • Sercos III
