Model T24-ACMm: OEM Wireless Sensor Transmitter

OEM Wireless Sensor Transmitter

The Load Cell Central T24-ACMm wireless sensor transmitter takes the millivolt output from standard cabled sensors such as load cells, pressure and torque transducers, temperature sensors, pulse inputs, and potentiometers, or 0-10 V and 0-20 mA (4-20 mA) sensor outputs and converts it to a wireless signal ready to be received by any one of our T24 receivers.  The wireless transmission distance is up to 500 meters (1,600 feet, line of sight).

Product Pricing

Part No.DescriptionPriceQty.
T24-ACMm-SAWireless Load Cell Transmitter$457.00

T24-ACMm-SAfFast Wireless Load Cell Transmitter, Up to 2,000Hz$620.00

T24-ACMm-IAWireless Current Transmitter, 4-20mA$457.00

T24-ACMm-VAWireless Voltage Transmitter, 0-10VDC$457.00

T24-ACMm-TAWireless Temperature Transmitter$457.00

T24-ACMm-PAWireless Pulse Transmitter$457.00

T24-ACMm-RAWireless Potentiometer Transmitter$457.00

Additional Options
Part No.DescriptionPriceQty.
T24-BB1Battery Pack for T24-ACMm$77.00

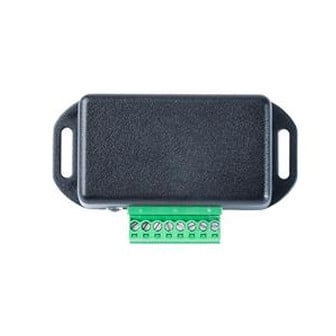

The T24-ACMm, supplied in a miniature enclosure (76 X 35 X 20 mm), is 3VDC operational or uses our optional T24-BB1 battery pack with two "AAA" batteries, and is suitable for mounting directly on a sensor or in an application with little space available.

Setup and calibration is done wirelessly via a base station (T24-BSu, T24-BSue, or T24-BSi) connected to a PC or laptop running the provided T24 Toolkit software.  For viewing and logging the data from the T24-ACM units use the T24-LOG100, or T24-Quick View software.

To complete the wireless system, a variety of interfaces are available, from handheld displays to analog output devices.  One or more of the receivers can be used simultaneously to receive data from a single T24-ACM transmitter. For example, for a crane application: Display data remotely with the handheld T24-HS and provide a relay output module with the T24-RMI, which in the event of an overload can sound an alarm and / or stop the lifting operation.

Available T24 Transmitters
T24-ACMm     3VDC operational or use T24-BB1 battery pack     Range up to 500 meters
T24-ACMi       Powered by two "AA" batteries                                Range up to 800 meters
T24-ACM        Powered by two "D" batteries                                  Range up to 800 meters

Available Input Options

 Load Cell Diagram

 T24-SA
Load Cell Input
Up to 200Hz

 High Speed Load Cell

T24-SAf
Load Cell Input
Up to 2,000Hz


Wireless Current Input  T24-IA
Current 4-20mA Input
Up to 200Hz
 Wireless Voltage Input  T24-VA
Voltage 0-10VDC Input
Up to 200Hz
 Wireless Temperature Input  T24-TA
Temperature Input
Up to 200Hz
Wireless Pulse Input T24-PA
Pulse Input
Up to 200Hz
 Wireless Potentiometer Input  T24-RA
Potentiometer Input
Up to 200Hz
