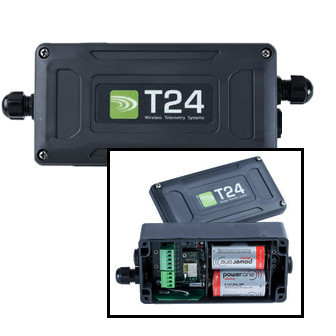

Model T24-AR Wireless Load Cell Signal Repeater

Wireless Load Cell Signal Repeater

The T24-AR will enable the T24 range of acquisition modules to span around obstacles or increase range or coverage.

Features

  • Repeater module to increase range and overall coverage
  • Allows T24 transmission to span around obstacles
  • Integrated PCB antenna
  • Simple configuration using base station & T24 Toolkit software
  • 1 year manufacturers warranty



add to cartProduct Pricing

Part No.DescriptionPriceQty.
T24-ART24 Product Signal Repeater, Operates on D-Cell Batteries or 5 to 18VDC$494.00

Additional Options
Part No.DescriptionPriceQty.
PSC-12-01512VDC, 1.25A, 15W Power Supply, 85-264VAC Universal Input, Din Rail Mount$95.00

add to cart

The repeater acts as a transparent link between acquisition modules and the receiver, powered by eithere a pair of alkaline "D" cells or an external power supply (5-18 V).  The repeater will allow messages to be repeated once which can effectively double the radio range.  Adding multiple repeaters will not increase the range but can increase overall coverage.

Brochures

Product specification diagram for the Model T24-AR wireless load cell
