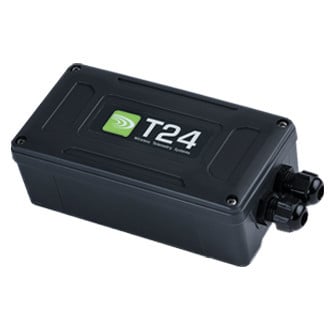

Model T24-BSi Wireless Load Cell / Scale Base Station

Wireless Load Cell / Scale Base Station

The T24-BSi is an industrial base station, housed in an IP65 standard enclosure.  This device offers a broad range of interface options for a user.  The T24-BSi can be powered and controlled using a single USB interface; however the T24-BSi also has serial RS232 and RS485 interfaces at baud rates of 9600 - 460800.  When using either of the serial interfaces, the device must be powered externally.  The serial interface .dll (Dynamic Link Library) provides the ability for customized user software to be created with the use of VB (Virtual Basic) over any interface the user wishes to select.


  • USB interface
  • DLL (Dynamic Link Library) files for software developers
  • RS232 and RS485 interfaces
  • Variable Baud Rates
  • Cased or Din Rail mounting options
  • 1 year manufacturer's warranty



Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.DescriptionPriceQty.
T24-BSiWireless Base Station for T24 Products, USB / RS232 / RS485 Communications$565.00

Additional Options
Part No.DescriptionPriceQty.
PSC-24-015 24VDC, .63A, 15W Power Supply, 85-264 VAC Universal Input, Din Rail Mount$102.00

add to cart

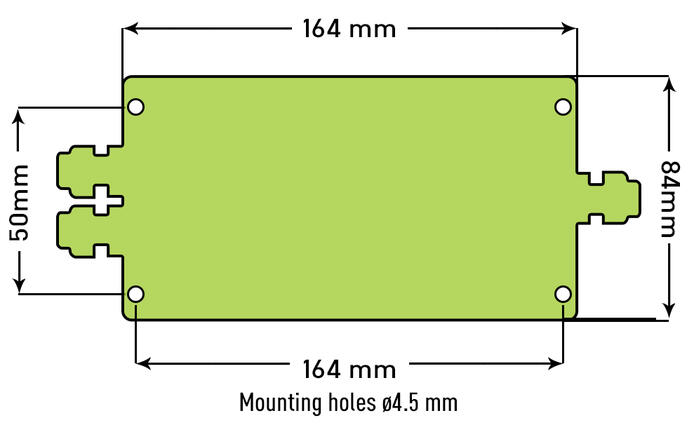

Diagram for the dimensions of the Model T24-Bsi wireless load cell

There are no reviews yet for this product. Write a Review

Product Bulletins
