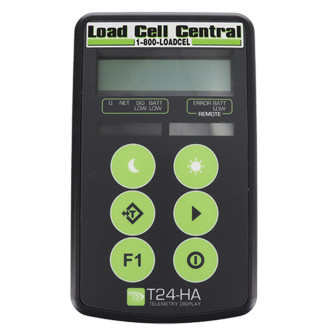

Model T24-HA Wireless Load Cell & Scale Display

 Wireless Load Cell & Scale Display

The T24-HA is an advanced handheld indicator with the ability to display data from up to 12 sensors / acquisition modules. It will display data from any of Load Cell Central's acquisition modules (strain, voltage, or current).


  • Portable handheld display indicator for displaying data from up to 12 sensors
  • Very low power consumption for long battery life
  • Worldwide license-exempt 2.4 GHz radio
  • 800 meter (2,600 feet) range maximum
  • Simple configuration and calibration via PC using a base station with Telemetry Toolkit software
  • Programmable wireless print capability
  • 6 button tactile keypad and environmentally sealed to IP65



Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.DescriptionPriceQty.
T24-HAUp to 12 Channel Wireless Display with Summing Feature$1,030.00

Additional Options
Part No.DescriptionPriceQty.
TR100-CALeather Carry Case for T24-HA$65.00

add to cart

T24-HA technical specifications & dimensions


This unit has an auto "off" function which can "power off" acquisition modules to extend battery life and reduce maintenance costs. The handheld will also power itself and acquisition modules "off" if no buttons are pressed in a specified period of time.

The wide operating temperature range and the robust technology ensures that the module is not susceptible to harsh physical or electrical environments. The module can operate in two modes:

Result Mode: This default mode creates a single result by summing up the values from up to 12 acquisition modules simultaneously as well as allowing users to view the discrete values that make up the result.

Item Mode: In this mode each acquisition module is treated as a separate entity and the T24-HA is used to cycle through all available items.

There are no reviews yet for this product. Write a Review

Product Bulletins
