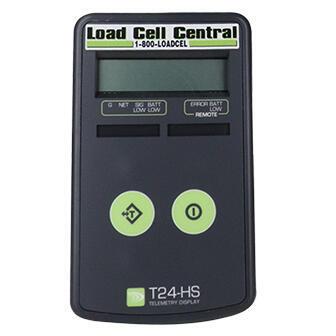

Model T24-HS Wireless Load Cell Single Channel Display

Wireless Load Cell Single Channel Display

The T24-HS Handheld Display provides one-to-one data display from any of Load Cell Central's acquisition modules (voltage, strain, current). Input parameters are sent to the handheld through a 2.4 GHz radio frequency, enabling users to observe a digital display from distances extending to 2,600 feet.

The T24-HS handheld display can deactivate acquisition modules with a button press, effectively prolonging battery life and diminishing maintenance expenses. In the absence of user activity, the T24-HS  will automatically power off after 5 minutes.

A wide temperature operating range and robust technology ensure that the module is not susceptible to harsh physical or electrical environments.

Features

  • Portable handheld indicator for displaying data from one sensor
  • Ability to wirelessly power off the acquisition module
  • Two-button tactile keypad
  • Worldwide license-exempt 2.4 GHz radio
  • Up to 800 meters (2,600 feet) range line of sight
  • Environmentally sealed to IP65

Reviews

Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.DescriptionPriceQty.
T24-HSSingle Channel Wireless Handheld Display$720.00

Additional Options
Part No.DescriptionPriceQty.
TR100-CALeather Carry Case for T24-HS$65.00

add to cart



Brochures

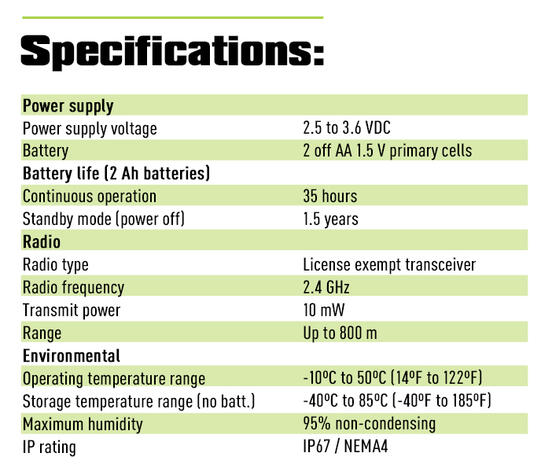

Specification sheet for the Model T24-HS wireless load cell display

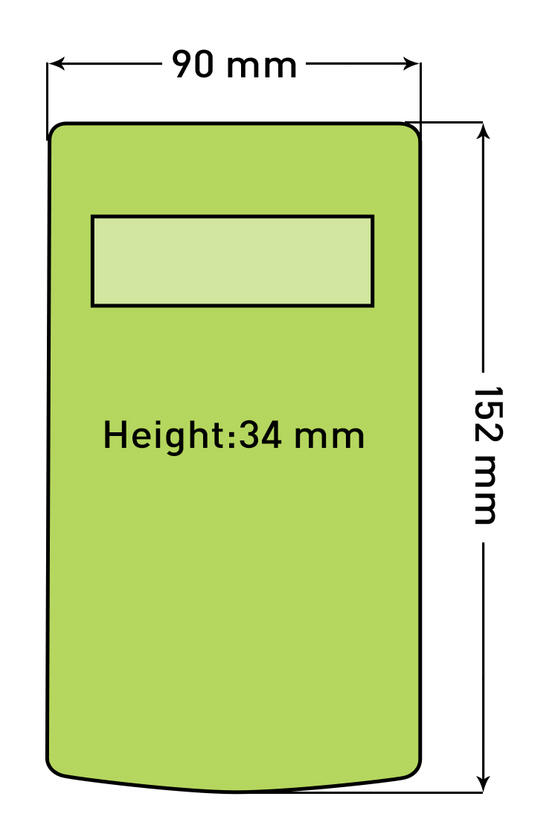

T24-HS dimension diagram

There are no reviews yet for this product. Write a Review

Product Bulletins
