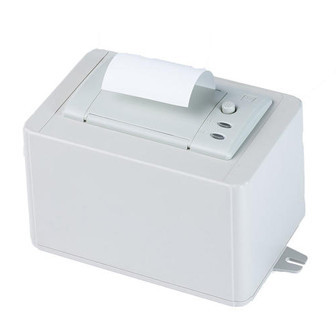

Model T24-PR1 Wireless Load Cell Printer telemetry-enabled

Wireless Load Cell Printer telemetry-enabled

The T24-PR1 is a telemetry-enabled printer that is capable of printing and summing values from up to 8 acquisition modules.  Designed with a wide input voltage range 9-36 V this printer module is suitable for in-vehicle applications as well as more static applications.  Can be supplied with a main power supply for desktop use.


  • Thermal printer with 57 mm (2.244") paper width
  • Up to 32 characters per line
  • High speed printing (30 mm / sec)
  • Capable of printing data from up to 8 acquisition modules or a T24-HA advanced handheld module
  • 800 meter (2,600 feet) range maximum, line of sight
  • Text and formatting stored within module
  • Full error detection and correction
  • Simple configuration via PC using a base station with Telemetry Toolkit software



There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.DescriptionPriceQty.
    T24-PR1Wireless Thermal Printer for T24 Products, 9 to 32VDC Operational$895.00

    add to cart

    t24-pr1 wireless telemetry-enabled printer specifications

    t24-pr1 wireless telemetry-enabled printer diagram

    The printer can be triggered using either software control or a T24-HA handheld device.  The PC-based Toolkit allows users to enter up to 8 acquisition module data sources, with an option to sum all 8 components, as well as to add text and format the output design.

    NOTE: Requires either T24-BSu or T24-BSi for configuration.
