Model T24-RM1 Wireless Load Cell Relay Module

Wireless Load Cell Relay Module

The T24-RM1 offers relays capable of mains power switching. These relays can be configured as high, low, or hysteresis-band setpoint alarms to one or a sum of up to eight T24 devices. Relays can be latched and a digital input or external command can be used to reset them.

Features

  • Offers dual 240 V AC 5 Amp relays
  • Latching relays (signal resettable)
  • Sums up to eight T24 acquisition modules
  • Alarm signal
  • Up to 800 meter (2,600 feet) wireless range line of sight
  • Worldwide license-exempt 2.4 GHz radio
  • Environmentally sealed to IP65

Reviews

Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.DescriptionPriceQty.
T24-RM1Wireless Dual Relay Module for T24 Products, 9 to 32VDC Operational$790.00

Additional Options
Part No.DescriptionPriceQty.
PSC-24-01524VDC, .63A, 15W Power Supply, 85-264 VAC Universal Input, Din Rail Mount$102.00

add to cart

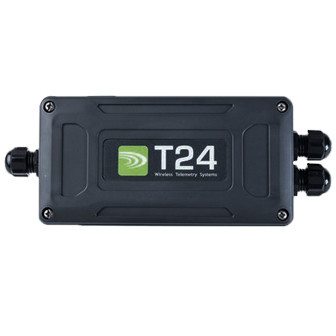

An alarm signal relay is operated if communication is lost or other selectable errors occur and the alarm output can be silenced by a contact-free digital input. This module is supplied as standard in an IP65 sealed ABS case. A DIN rail option is also available.

The state of the power relays can be set as required if an error occurs.

t24-rm1 relay module specifications and diagrams
