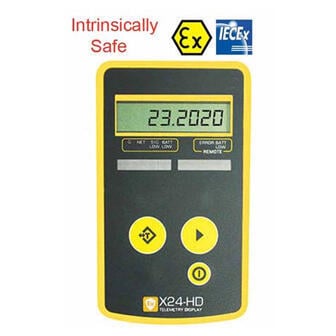

Model X24-HD Intrinsically Safe Wireless Load Cell Indicator

Intrinsically Safe Wireless Load Cell Indicator

The X24-HD from Load Cell Central is a versatile ATEX / IECEx handheld display designed to be highly adaptable, and compatible with both X24 and T24 Transmitter modules. Having a wireless coverage extending up to 800 meters, it enables remote monitoring in hazardous zones for a variety of input sources like load cells or voltage, utilizing 2.4 GHz radio technology.


  • Approved for use in ATEX and IECEx Zone 1 & 2 areas
  • Wakes and reads up to 24 wireless load cell modules
  • Worldwide license-exempt 2.4 GHz radio
  • Up to 800 meter (2,600 feet) line of sight range
  • Simple configuration via PC using base station with Telemetry Toolkit software
  • Environmentally sealed to IP67


Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.DescriptionPriceQty.
X24-HDWireless Load Cell Receiver, Intrinsically Safe ATEX IECEx Zone 1 & 2$2,300.00

Additional Options
Part No.DescriptionPriceQty.
TR100-CALeather Carry Case for X24-HD$65.00

add to cart

The X24-HD receives data from the remote transmitter module such as X24-ACMi-SA, captures this data and displays it. The handheld can operate by displaying data from any transmitter detected or you can define up to 24 specific transmitters to allow the operator to cycle through. Grouping functions allows up to 8 group totals to be viewable. Each group or individual transmitter has user-defined name, scaling, display format, zero functions and overload settings

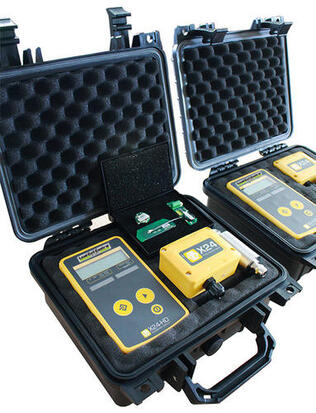

X24-HD wireless load cell unit in leather carrying case
