Junction Boxes and Summing Cards:

Junction Boxes

Load Cell Central’s junction cards allow for multi-cell scale setups to maintain their accuracy regardless of the placement of the load. The same is true for vessel weighing applications with contents that are not self-leveling, like gravel, or corn. Summing cards are used primarily in floor scales and vessel weighing applications combining the outputs of 2 or more load cells. We provide models supporting up to 12 load cells, with expansion slots to increase the maximum number of cells further.

The 4LCS and other models feature sense connections allowing for 6 wire connections and longer cable runs without voltage drop. Our summing cards are available in a board only model for our OEM customers, as well as both stainless steel and polycarbonate enclosures. Featuring positive grip cable glands, and a watertight seal, the 4LCS enclosures maintain a NEMA 4X rating for use in moist environments.

add to cartProduct Pricing

Part No.CapacityDescriptionPriceQty.
Additional Options
Part No.DescriptionPriceQty.
4LCS-B4-channel, signal trim junction card (card only)$140.00

4LCS-B+4-channel, signal trim junction card. This includes 25 foot home run cable (card + cable)$140.00

4LCS-C4-channel strip, signal trim junction card (card only)$140.00

4LCS-PPolyfiber enclosure for a 4 channel junction card (enclosure only)$90.00

4LCS-SStainless steel enclosure for a 4 channel junction card (enclosure only)$138.00

4LCS-PBPolyfiber, NEMA 4X enclosure with 4-channel signal trim junction card (enclosure + card)$180.00

4LCS-PB+Polyfiber, NEMA 4X enclosure with 4-channel signal trim junction card and 25' cable. (enclosure + card + cable)$205.00

4LCS-SBStainless steel, NEMA 4X enclosure with 4-channel signal trim junction card (enclosure + card)$220.00

4LCS-SB+Stainless steel, NEMA 4X enclosure with 4-channel signal trim junction card and 25' cable. (enclosure + card + cable)$250.00

add to cart

Brochures



Features

Enclosures: NEMA 4X; Stainless steel or Fiberglass Reinforced Polyester.
Connections: Screw terminals or Lever type; accepts up to 12 AWG wire.
Potentiometers: 25 turn cermet
Resistor Temp. Coefficent: 25ppm/°C

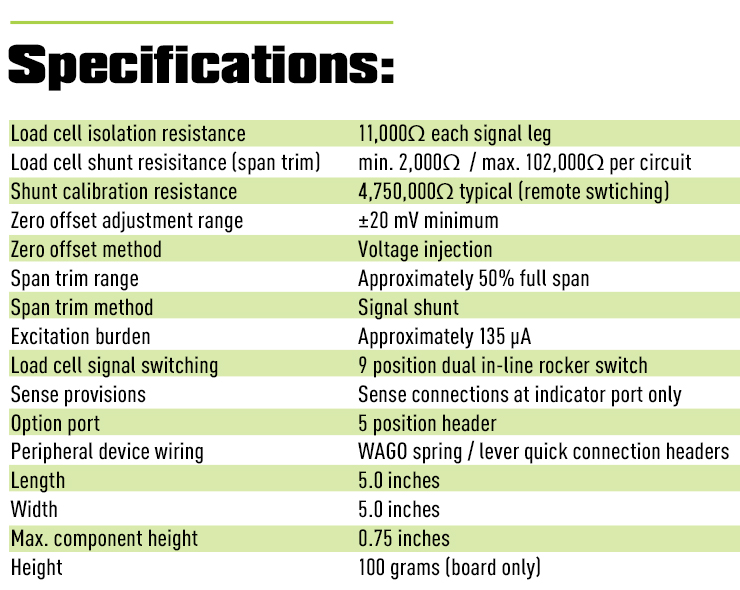

Specification sheet for the S4J1 smart load cell junction box



Why use a load cell summing box?

In a multi-load cell system, a summing junction box is used to “trim” and combine the signals from each load cell. Trimming is a process of equalizing the inputs from these multiple load cells into a single, accurate, output.
