Load Buttons:

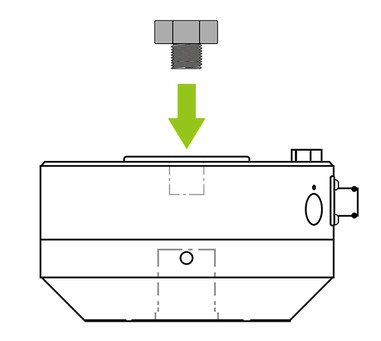

Load Cell Load Buttonsload pin / load cell assembly

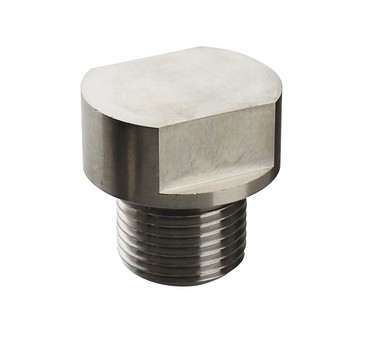

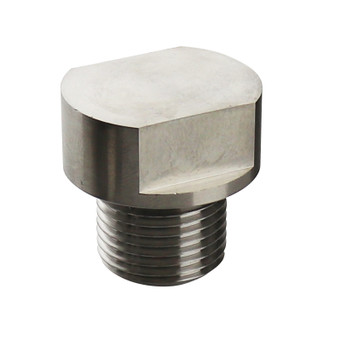

Load buttons allow for proper loading in compression applications where in-line threaded mounting is not possible.  The use of these can be more clearly seen in cells like our SRP4 and LPSW-B.  Featuring 17-4 stainless steel and heat treating, our load buttons will withstand repeated use and ensure your force sensors are loaded properly, extending their lifespan.

Thread Length
1/2-20 UNF 0.700"
3/4-16 UNF 0.900"
  • Heat treated polished stainless steel
  • Other sizes available, contact Load Cell Central



Additional Options
Part No.DescriptionPriceQty.
LB1Load button with 10-32 thread$55.00

LB2Load button with 1/4-28 thread$55.00

LB3Load button with 3/8-24 thread$55.00

LB4Load button with 1/2-20 thread$65.00

LB5Load button with 5/8-18 thread$70.00

LB6Load button with 3/4-16 thread$75.00

LB7Load button with 1-14 thread$100.00

LB8Load button with 1 1/4-12 thread$115.00

LB9Load button with 1 1/2-12 thread$120.00

add to cart

Product Bulletins
