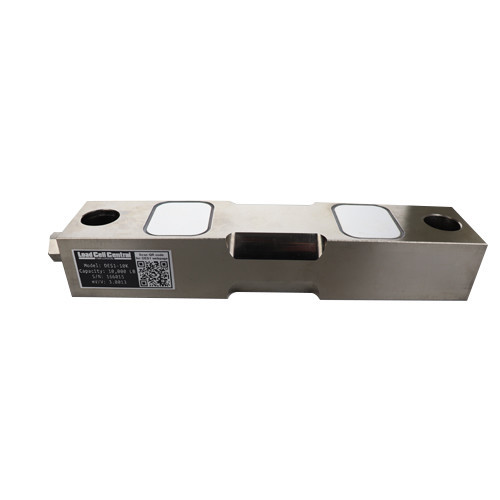

Model DES7: Double Ended Shear Beam Load Cell

Double Ended Shear Beam Load Cell

Direct Replacement for 65016, 5203.  For use with our Duramount 7-S3 Mounts

Capacities

1K, 1.5K, 2K, 2.5K, 4K, 5K, 10K, 15K, 20K, 25K, 35K, 50K, 75K lb.

Reviews

There are no reviews yet for this product. Write a Review

add to cartProduct Pricing

Part No.CapacityDescriptionStatusPriceQty.
DES7-1K1,000 lbDouble Ended Beam Load CellCall for Lead Time$530.00
increase
decrease
DES7-1.5K1,500 lbDouble Ended Beam Load CellCall for Lead Time$530.00
increase
decrease
DES7-2K2,000 lbDouble Ended Beam Load CellCall for Lead Time$530.00
increase
decrease
DES7-2.5K2,500 lbDouble Ended Beam Load CellCall for Lead Time$530.00
increase
decrease
DES7-4K4,000 lbDouble Ended Beam Load CellTypical Lead Time: 2-3 Weeks$495.00
increase
decrease
DES7-5K5,000 lbDouble Ended Beam Load CellCall for Lead Time$530.00
increase
decrease
DES7-10K10,000 lbDouble Ended Beam Load CellCall for Lead Time$620.00
increase
decrease
DES7-15K15,000 lbDouble Ended Beam Load CellCall for Lead Time$620.00
increase
decrease
DES7-20K20,000 lbDouble Ended Beam Load CellCall for Lead Time$620.00
increase
decrease
DES7-25K25,000 lbDouble Ended Beam Load Cell1 available$620.00
increase
decrease
DES7-35K35,000 lbDouble Ended Beam Load Cell4 available$620.00
increase
decrease
DES7-50K50,000 lbDouble Ended Beam Load CellCall for Lead Time$910.00
increase
decrease
DES7-75K75,000 lbDouble Ended Beam Load CellTypical Lead Time: 6-8 Weeks$850.00
increase
decrease
DES7-SS-1K1,000 lbStainless Steel Double Ended Beam Load CellTypical Lead Time: 2-3 Weeks$575.00
increase
decrease
DES7-SS-1.5K1,500 lbStainless Steel Double Ended Beam Load CellTypical Lead Time: 2-3 Weeks$575.00
increase
decrease
DES7-SS-2K2,000 lbStainless Steel Double Ended Beam Load CellCall for Lead Time$620.00
increase
decrease
DES7-SS-2.5K2,500 lbStainless Steel Double Ended Beam Load CellCall for Lead Time$620.00
increase
decrease
DES7-SS-4K4,000 lbStainless Steel Double Ended Beam Load CellCall for Lead Time$620.00
increase
decrease
DES7-SS-5K5,000 lbStainless Steel Double Ended Beam Load CellCall for Lead Time$620.00
increase
decrease
DES7-SS-10K10,000 lbStainless Steel Double Ended Beam Load CellCall for Lead Time$700.00
increase
decrease
DES7-SS-15K15,000 lbStainless Steel Double Ended Beam Load CellCall for Lead Time$700.00
increase
decrease
DES7-SS-20K20,000 lbStainless Steel Double Ended Beam Load CellCall for Lead Time$700.00
increase
decrease
DES7-SS-25K25,000 lbStainless Steel Double Ended Beam Load CellCall for Lead Time$700.00
increase
decrease
DES7-SS-35K35,000 lbStainless Steel Double Ended Beam Load CellCall for Lead Time$700.00
increase
decrease
DES7-SS-50K50,000 lbStainless Steel Double Ended Beam Load CellCall for Lead Time$1,390.00
increase
decrease
DES7-SS-75K75,000 lbStainless Steel Double Ended Beam Load CellTypical Lead Time: 6-8 Weeks$1,295.00
increase
decrease
Additional Options
Part No.DescriptionStatusPriceQty.
DM-7-S3-1/5KTank Load Cell Weighing Assembly, Alloy SteelCall for Lead Time$225.00
increase
decrease
DM-7-S3-10/35KTank Load Cell Weighing Assembly, Alloy SteelCall for Lead Time$360.00
increase
decrease
DM-7-S3-50/75KTank Load Cell Weighing Assembly, Alloy SteelCall for Lead Time$1,260.00
increase
decrease

add to cart

Specifications

Output:
3mV/V ±0.25%
Combined Error:
0.03%
Non-Repeatability:
0.01%
Creep (30 minutes):
0.024%
Thermal Sensitivity Shift:
0.017%/10°C
Thermal Zero Shift:
0.023%/10°C
Comp.Temp. Range:
-10°C to +40°C
Operating Temp. Range:
-35°C to +70°C
Zero Balance:
±1%
Input Resistance:
700 Ohm ±7 Ohm
Output Resistance:
703 Ohm ±4 Ohm
Standard Cable Length:
20 ft.
Insulation Resistance:
> 5000 Megohm
Recommended Excitation:
10V
Maximum Excitation:
15V
Safe Overload:
150%
Ultimate Overload:
300%
