Model SBSA: Single Ended Beam Load Cells

Single Ended Beam Load Cells

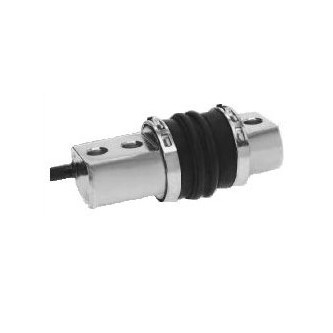

Load Cell Central's model SBSA single ended beam load cell is designed for multiple load cell applications such as medium and low capacity vessel weighing applications and bagging scales. Suitable for washdown applications, the SBSA is constructed of a nickel plated high alloy tool steel. Also available in stainless steel (consult factory for model SBS).

When used with our Duramount 10-S2 load cell mounting assembly the SBSA is the ideal choice for vessel weighing and batching systems.

Interchangeable with 9503, 60040

Capacities

(lb.) 25, 50, 75, 100, 150, 200, 250, 300, and 500

Reviews

There are no reviews yet for this product. Write a Review

add to cartProduct Pricing

Part No.CapacityDescriptionStatusPriceQty.
SBSA-2525 lbLow Capacity Beam Load CellTypical Lead Time: 1-2 Weeks$325.00
increase
decrease
SBSA-5050 lbLow Capacity Beam Load CellTypical Lead Time: 1-2 Weeks$325.00
increase
decrease
SBSA-7575 lbLow Capacity Beam Load CellTypical Lead Time: 1-2 Weeks$325.00
increase
decrease
SBSA-100100 lbLow Capacity Beam Load CellCall for Lead Time$385.00
increase
decrease
SBSA-150150 lbLow Capacity Beam Load CellCall for Lead Time$412.50
increase
decrease
SBSA-200200 lbLow Capacity Beam Load CellCall for Lead Time$385.00
increase
decrease
SBSA-250250 lbLow Capacity Beam Load CellCall for Lead Time$385.00
increase
decrease
SBSA-300300 lbLow Capacity Beam Load CellTypical Lead Time: 1-2 Weeks$325.00
increase
decrease
SBSA-500500 lbLow Capacity Beam Load CellTypical Lead Time: 1-2 Weeks$325.00
increase
decrease
Additional Options
Part No.DescriptionStatusPriceQty.
DM-10-S2-25/250Anti-Vibration Tank & Hopper Weighing Mount for SBSA Load CellCall for Lead Time$430.00
increase
decrease
DM-10-S2-500Anti-Vibration Tank & Hopper Weighing Mount for SBSA Load CellCall for Lead Time$430.00
increase
decrease

add to cart

Dimensions

Single Ended Beam Load Cell Dimensions

Specifications

Output:
3 mV/V
Recommended Excitation:
10 V
Non-Repeatability:
0.01% F.S
Non-Linearity:
0.03% F.S./°F
Thermal Sensitivity Shift:
0.0008% F.S./°F
Thermal Zero Shift:
0.0011% F.S./ºF
Comp. Temp. Range:
0ºF to +150ºF
Bridge Resistance:
350 Ohms
Safe Overload:
150%
Standard Cable Length:
20 ft.
