Model LCS9: Single Ended Shear Beam Load Cell

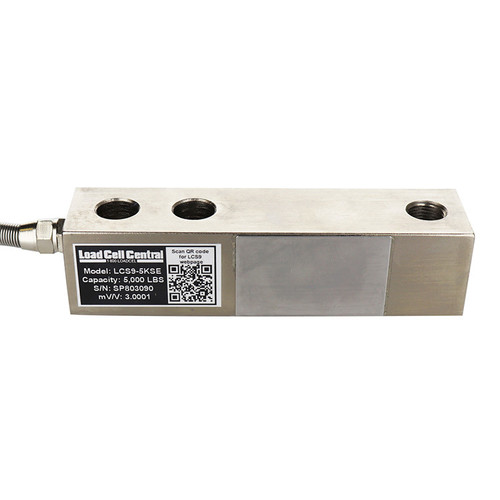

Single Ended Shear Beam Load Cell

Load Cell Central's model LCS9 is designed for multiple load cell applications such as industrial floor scales, barrel scales, or medium and low capacity vessel weighing applications. The LCS9 is constructed of a nickel plated high alloy tool steel and fully potted to IP65 to protect from water and moisture damage. Available in stainless steel and hermetically sealed. When used with our Duramount 3E mounting assembly the LCS9 shear beam load cell is the ideal choice for vessel weighing and batching systems.

  • Interchangeable with 5123, 65023, 30310

Capacities

(lbs.) 500, 1K, 2K, 2.5K, 3K, 4K, 5Kse, 5Kle, 10K, 15K, 20K

(kg) 250, 500, 1000, 1500, 2000, 2500se, 2500le, 5000



add to cartProduct Pricing

Part No.CapacityDescriptionPriceQty.
LCS9-500500 lbSingle Ended Shear Beam Load Cell$295.00
increase
decrease
LCS9-1K1,000 lbSingle Ended Shear Beam Load Cell$295.00
increase
decrease
LCS9-2K2,000 lbSingle Ended Shear Beam Load Cell$295.00
increase
decrease
LCS9-2.5K2,500 lbSingle Ended Shear Beam Load Cell$295.00
increase
decrease
LCS9-3K3,000 lbSingle Ended Shear Beam Load Cell$295.00
increase
decrease
LCS9-4K4,000 lbSingle Ended Shear Beam Load Cell$295.00
increase
decrease
LCS9-5Kse5,000 lbSingle Ended Shear Beam Load Cell, Small Element 5K$295.00
increase
decrease
LCS9-5Kle5,000 lbSingle Ended Shear Beam Load Cell, Large Element 5K$375.00
increase
decrease
LCS9-10K10,000 lbSingle Ended Shear Beam Load Cell$375.00
increase
decrease
LCS9-15K15,000 lbSingle Ended Shear Beam Load Cell$650.00
increase
decrease
LCS9-20K20,000 lbSingle Ended Shear Beam Load Cell$650.00
increase
decrease
Additional Options
Part No.DescriptionPriceQty.
DM-3ETank, Hopper, Vessel Weighing Assembly for LCS9 (Load Cell not Included)$255.00

DM-3E-LELarge Element Tank, Hopper, Vessel Weighing Assembly for LCS9 (Load Cell not Included)$305.00

add to cart

Brochures



Specifications

Output:
3 mv/V ± 0.25%
Combined error:
0.025%
Non-Repeatability:
0.01%
Creep (20 minutes):
0.03%
Zero Return (20 minutes):
0.03%
Thermal Sensitivity Shift:
0.0015%
Thermal Zero Shift:
0.0026%/ ºC
Comp. Temp. Range:
-10ºC to +40 ºC
Operating Temp. Range:
-40 ºC to +65 ºC
Zero Balance:
± 1%
Input Resistance:
385 Ohms ± 3 Ohms
Output Resistance:
350 Ohms ± 3 Ohms
Insulation Resistance:
>2000 Megohm
Full Scale Deflection:
< 0.5 mm
Recommended Excitation:
10 V
Maximum Excitation:
15 V
Safe Overload:
150%
Ultimate Overload:
300%

Cable Specification

4 Conductor with drain wire, #22 gauge braided shield & polyurethane jacket, ends stripped & tinned.
