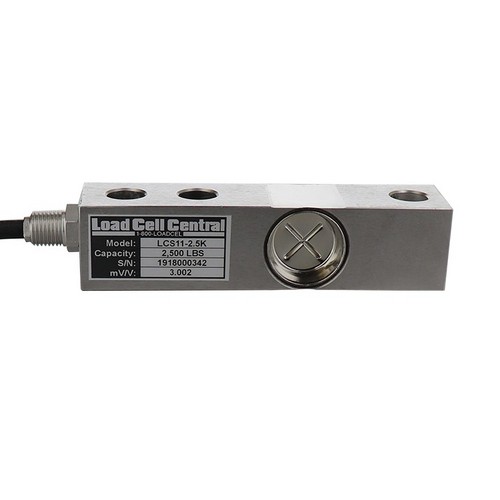

Model LCS11: Stainless Steel Shear Beam Load Cell

Stainless Steel Shear Beam Load Cell

The LCS11 stainless steel shear beam load cell incorporates a welded seal to achieve an IP68 rating to protect from moisture damage. When used with our Duramount 30 stainless steel shear beam load cell mount, the LCS11 is the ideal choice for load cell vessel weighing and batching systems in harsh environments found in the chemical and food industries.

Capacities

(lb) 500, 1K, 2.5K, 4K, 5Kse, 5Kle, 10K, 15K, 20K

Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.CapacityDescriptionPriceQty.
    LCS11-500500 lbStainless Steel Hermetically Sealed Beam Load Cell$385.00
    increase
    decrease
    LCS11-1K1,000 lbStainless Steel Hermetically Sealed Beam Load Cell$385.00
    increase
    decrease
    LCS11-2.5K2,500 lbStainless Steel Hermetically Sealed Beam Load Cell$385.00
    increase
    decrease
    LCS11-4K4,000 lbStainless Steel Hermetically Sealed Beam Load Cell$385.00
    increase
    decrease
    LCS11-5Kse5,000 lbStainless Steel Hermetically Sealed Beam Load Cell, Small Element 5K$385.00
    increase
    decrease
    LCS11-5Kle5,000 lbStainless Steel Hermetically Sealed Beam Load Cell, Large Element 5K$465.00
    increase
    decrease
    LCS11-10K10,000 lbStainless Steel Hermetically Sealed Beam Load Cell$465.00
    increase
    decrease
    LCS11-15K15,000 lbStainless Steel Hermetically Sealed Beam Load Cell$725.00
    increase
    decrease
    LCS11-20K20,000 lbStainless Steel Hermetically Sealed Beam Load Cell$725.00
    increase
    decrease
    Additional Options
    Part No.DescriptionPriceQty.
    DM-30S.S. Load Cell Weighing Assembly for LCS11 Load Cell (Load Cell not Included)$370.00

    DM-30LELarge Element S.S. Load Cell Weighing Assembly for LCS11-5kle and 10K Load Cell (Load Cell not Included)$490.00

    add to cart

    Brochures



    Specifications

    Output:
    3 mv/V ± 0.25%
    Combined error:
    0.023%
    Non-Repeatability:
    0.023%
    Creep (30 minutes):
    0.03%
    Comp. Temp. Range:
    -10ºC to +50 ºC
    Operating Temp. Range:
    -35 ºC to +65 ºC
    Zero Balance:
    ± 1%
    Input Resistance:
    350 Ohms ± 7 Ohms
    Output Resistance:
    350 Ohms ± 3 Ohms
    Insulation Resistance:
    >3000 Megohm
    Recommended Excitation:
    10 V
    Maximum Excitation:
    15 V
    Safe Overload:
    150%
    Ultimate Overload:
    300%

    Cable

    4 Conductor #22 gauge braided shield & polyurethane jacket, ends stripped & tinned.

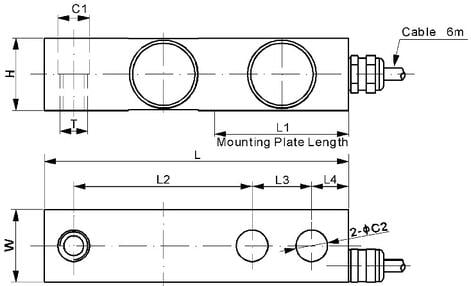

    Dimensions

    shear beam load cell dimensions

    Capacity
    (lb)
    Dimensions (inches)
    C1 C2 H L L1 L2 L3 L4 W T
    1K - 5Kse 0.53 0.53 1.22 5.12 2.25 3.00 1.00 0.62 1.22 1/2-20 UNF-2B
    5Kle - 10K 0.79 0.79 1.50 6.75 3.00 3.75 1.50 0.75 1.50 3/4-16 UNF-2B
    15K - 20K 1.03 1.03 2.00 8.75 4.00 4.75 2.00 1.00 2.00 1-14 UNS-2B
