Model DTB: Miniature Canister Load Cell

Miniature Canister Load Cell

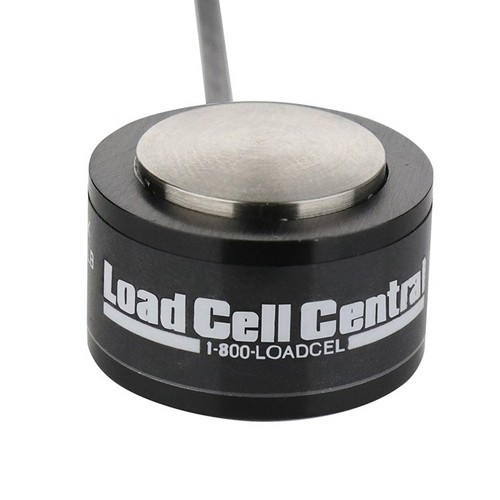

Load Cell Central's Model DTB miniature canister column type load cells are designed for low cost production and testing applications (for example, press calibration). Engineered for compression force measurements up to 30,000 lbs. and manufactured from heat treated from 17-4 PH stainless steel, this force transducer achieves a maximum non-linearity of 0.25% full scale. Precision gaging techniques and stainless steel construction provide excellent long-term stability and reliability under severe operating conditions. The model DTB compression-only load cell has an integral load button--slightly convex for accurate load distribution--machined as part of the load cell. Standard signal output is 2 mV/V for most capacities (for example, 20 millivolts full scale with 10V excitation) so that it can be used with most any load cell digital indicator or transducer amplifier.

Capacities

2,000, 3,000, 5,000, 7,500, 10,000, 15,000, 20,000, 30,000 lbs.

Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.CapacityDescriptionPriceQty.
    DTB-2K2,000 lbMiniature Canister Load Cell$455.00
    increase
    decrease
    DTB-3K3,000 lbMiniature Canister Load Cell$455.00
    increase
    decrease
    DTB-5K5,000 lbMiniature Canister Load Cell$455.00
    increase
    decrease
    DTB-7.5K7,500 lbMiniature Canister Load Cell$482.00
    increase
    decrease
    DTB-10K10,000 lbMiniature Canister Load Cell$482.00
    increase
    decrease
    DTB-15K15,000 lbMiniature Canister Load Cell$589.00
    increase
    decrease
    DTB-20K20,000 lbMiniature Canister Load Cell$589.00
    increase
    decrease
    DTB-30K30,000 lbMiniature Canister Load Cell$589.00
    increase
    decrease

    add to cart

    Brochures

    Specifications

    Output:
    2 mV/V Nominal
    Non-Linearity:
    ±0.25% FS
    Hysteresis:
    ±0.25% FS
    Non-Repeatability:
    ±0.1% FS
    Thermal Sensitivity Shift:
    0.005% of Reading/°F
    Thermal Zero Shift:
    0.01% FS/°F
    Comp. Temp. Range*
    +60°F to +160°F
    Operating Temp. Range:
    -65°F to +200°F
    Bridge Resistance:
    350 Ohms Nominal
    Recommended Excitation:
    10V
    F.S. Deflection:
    0.002"
    Safe Overload:
    150%
    Cable Length:
    10 ft.
    Casing Material:
    17-4 PH Stainless Steel



    dtb miniature load cell diagram

    dtb miniature load cell diagram
