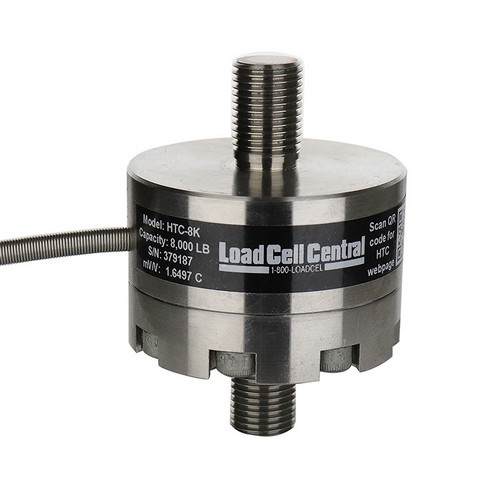

Model HTC: Dual Stud Load Cell Tension / Compression

Dual Stud Load Cell Tension / Compression

Load Cell Central's HTC Dual Stud load cell is supplied with a stud at each end for easy in-line mounting in ranges from 50 lbs. through 10,000 lbs. These load cells are highly accurate and manufactured from heat treated 17-4PH stainless steel. The sensing element incorporates bonded foil strain gages of the highest quality; cells are sealed for protection against most industrial environments.

Capacities

50, 100, 200, 500, 1K, 2K, 2.5K, 5K, 8K, 10K lbs

Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.CapacityDescriptionPriceQty.
    HTC-5050 lbDual Stud Universal Load Cell$579.00
    increase
    decrease
    HTC-100100 lbDual Stud Universal Load Cell$579.00
    increase
    decrease
    HTC-200200 lbDual Stud Universal Load Cell$579.00
    increase
    decrease
    HTC-500500 lbDual Stud Universal Load Cell$579.00
    increase
    decrease
    HTC-1K1,000 lbDual Stud Universal Load Cell$579.00
    increase
    decrease
    HTC-2K2,000 lbDual Stud Universal Load Cell$579.00
    increase
    decrease
    HTC-2.5K2,500 lbDual Stud Universal Load Cell$579.00
    increase
    decrease
    HTC-5K5,000 lbDual Stud Universal Load Cell$579.00
    increase
    decrease
    HTC-8K8,000 lbDual Stud Universal Load Cell$579.00
    increase
    decrease
    HTC-10K10,000 lbDual Stud Universal Load Cell$579.00
    increase
    decrease

    add to cart

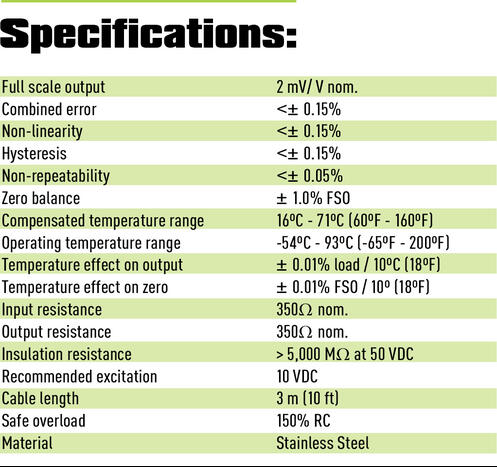

    model HTC load cell specifications

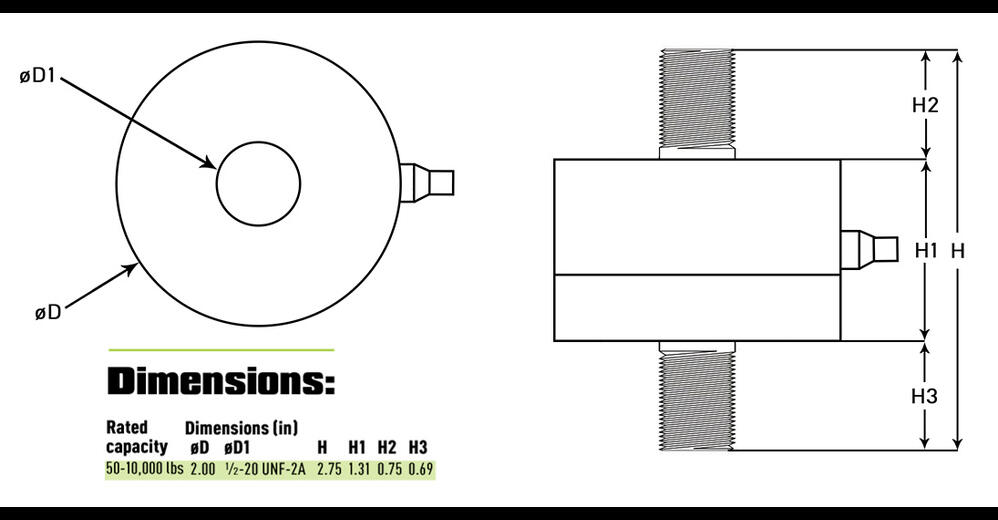

    model htc load cell diagram





    Product Bulletins
