Model RSTC: Miniature Load Cell

Miniature Load Cell

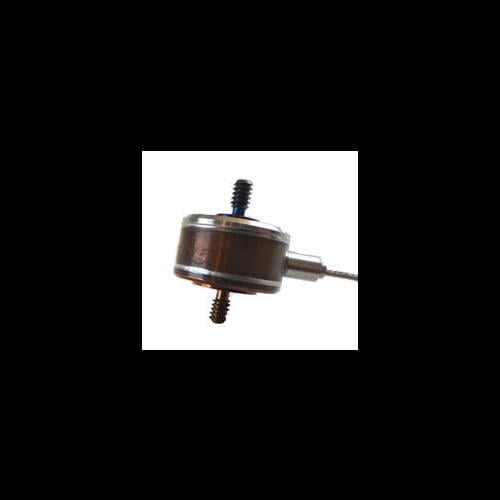

The Load Cell Central model RSTC Miniature Load Cell is designed to measure load ranges from 150 g to 1000 lb. With subminiature dimensions, including diameters from .50" to 0.75" and height of 0.38", these miniature load cells are easily incorporated into systems having limited space. This model achieves a combined non-linearity and hysteresis of 0.5% full scale and a frequency response of up to 58 kHz







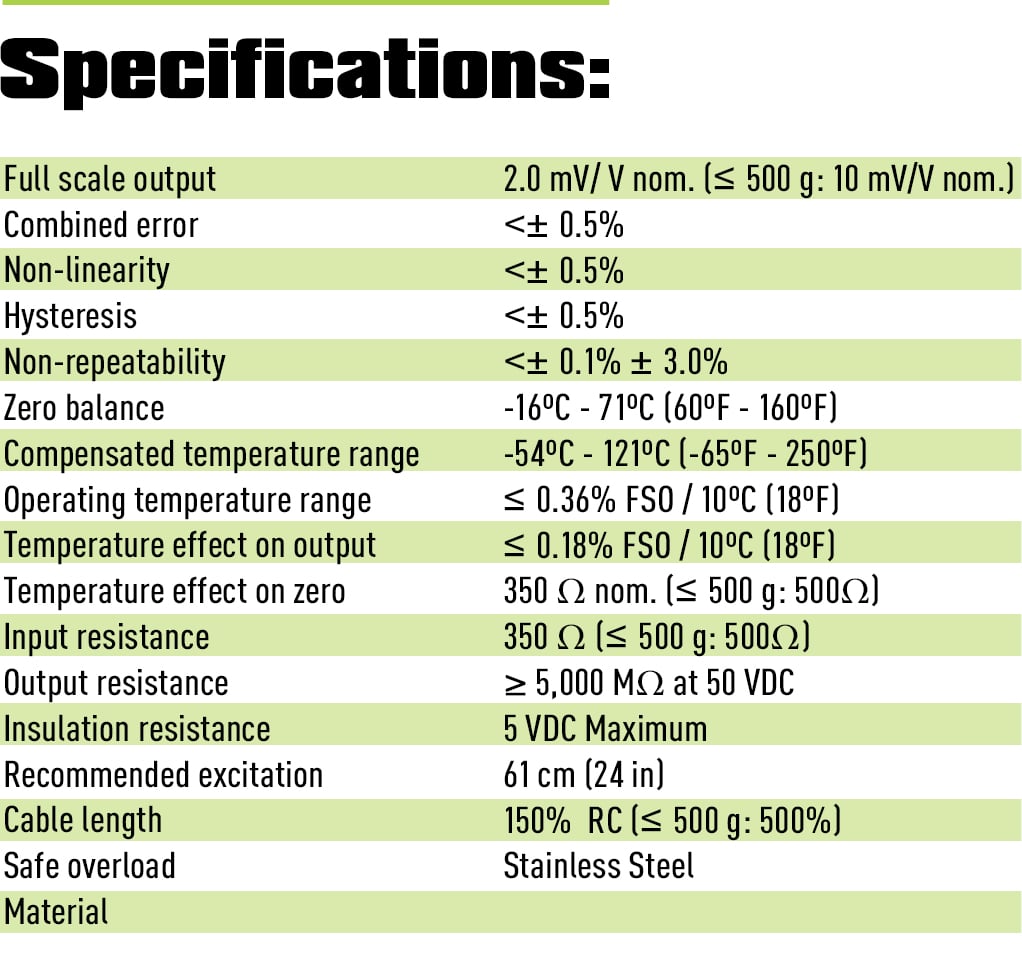

Capacities

(Gram) 150, 250, 500, 1000
(Lb) 5, 10, 25, 50, 100, 250, 500, 1K

Product Pricing

Part No.CapacityDescriptionPriceQty.
RSTC-150g150 gMiniature In-Line Load Cell$902.00

RSTC-250g250 gMiniature In-Line Load Cell$902.00

RSTC-500g500 gMiniature In-Line Load Cell$902.00

RSTC-1000g1000 gMiniature In-Line Load Cell$777.00

RSTC-55 lbMiniature In-Line Load Cell$777.00

RSTC-1010 lbMiniature In-Line Load Cell$777.00

RSTC-2525 lbMiniature In-Line Load Cell$777.00

RSTC-5050 lbMiniature In-Line Load Cell$777.00

RSTC-100100 lbMiniature In-Line Load Cell$777.00

RSTC-250250 lbMiniature In-Line Load Cell$814.00

RSTC-500500 lbMiniature In-Line Load Cell$814.00

RSTC-1K1000 lbMiniature In-Line Load Cell$814.00

Brochures





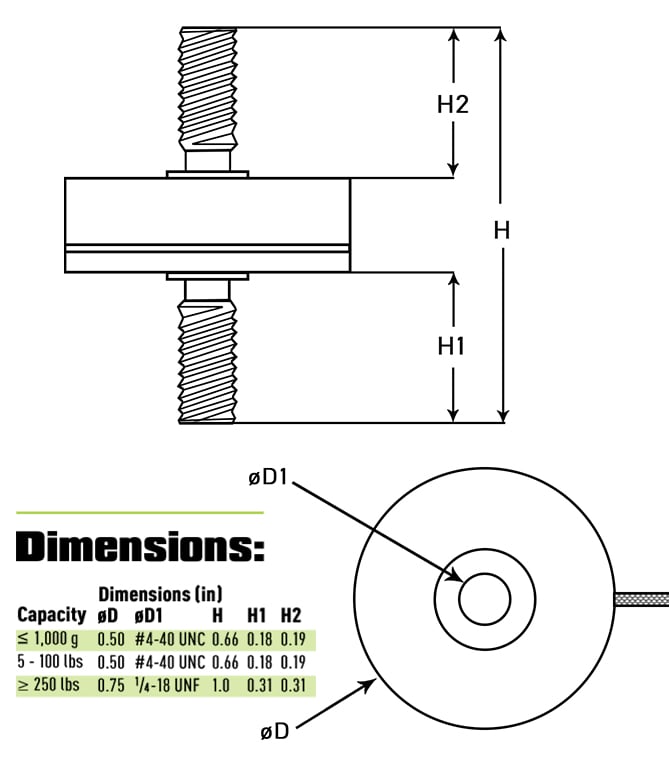

Dimensions

miniature load cell dimensions

Capacity Dimensions (inches)
D T H A B Q*
150, 250, 500, 1000 g 0.50 #4-40 UNC 0.29 0.19 0.18 4
5, 10, 25, 50, 100 lb 0.50 #4-40 UNC 0.29 0.19 0.18 4
250, 500, 1000 lb 0.50 1/4-28 UNF 0.38 0.31 0.31 20

* "Q" = maximum tightening torque allowed inch-lb.
