Custom Load Cells and Designs

Founded in 1985, Load Cell Central has been producing custom load cells for over three decades.  When a standard, off-the-shelf load cell cannot be used, let Load Cell Central work with you to design and build the right load cell for your application.  Read More



Recent Custom Load Cells Manufactured by Load Cell Central

Gauged Bolt Load Cells for Rocket Thrust Measurement

Custom Horseshoe-shaped load cells engineerd for a 27 million pound capacity press

These custom built, gauged bolt load cells were designed to measure rocket engine thrust with a capacity of 300,000 lbs. Find custom load cells for a wide variety of applications at Load Cell Central.

Triple Bridge Tension Link Load Cells

Custom Horseshoe-shaped load cells engineerd for a 27 million pound capacity press

Triple-bridge tension link load cells for measuring the force generated by a winch.

Custom Load Cells for Portable Beds & Carts

Custom Horseshoe-shaped load cells engineerd for a 27 million pound capacity press

Load cell originally designed for use under hospital beds is great for portable carts and tables.

Custom 3D Printed Load Cell Accessories

Custom Horseshoe-shaped load cells engineerd for a 27 million pound capacity press

Custom 3D printed enclosure for planar beam load cell for use in a medical application.

Custom Load Cells for Biomedical Applications

Custom Horseshoe-shaped load cells engineerd for a 27 million pound capacity press

Biomedical applications: The S-type load cells are used in a portable patient lifting device, the single point load cells in dialysis equipment, and the load cell on the right is made for mammography equipment.

Custom Load Cell Pins for Mining Shop Cranes

Custom Horseshoe-shaped load cells engineerd for a 27 million pound capacity press

Custom load cell pin built for a mining company's shop crane. It replaced the sheave pin and was able to achieve a system accuracy of 0.5%. The model HSI-LC display has 5" digits that can be easily seen from 200' away.

Custom Strain Gauge Load Cell

Custom Horseshoe-shaped load cells engineerd for a 27 million pound capacity press

Dissatisfied with the accuracy of their current hydraulic load cell, the customer requested a strain gauge type thru-hole load cell custom-built to measure the force on the tail stock of a lathe.

Replacement Hydraulic Load Cells

Custom Horseshoe-shaped load cells engineerd for a 27 million pound capacity press

Replacement load cell built based on a hydraulic load cell that was damaged and sent to us in pieces.This load cell was used under a pillow block bearing in a wastewater treatment plant.

Custom Horseshoe-Shaped Load Cell

Custom Horseshoe-shaped load cells engineerd for a 27 million pound capacity press

Horseshoe-shaped load cells custom engineered for a bearing manufacturer's 2.7 million pound capacity press.

We can design and build custom tension or compression load cells of any type. Choose from stainless steel, alloy steel, aluminum, or another material to meet your requirements.  With cost in mind, environmental protection of alloy steel can be improved with zinc or nickel plating.

We can precision machine any dimension you need.  Do you have discontinued load cells in place that are vital to your production?  Let us evaluate the cell and provide an identical interchange.

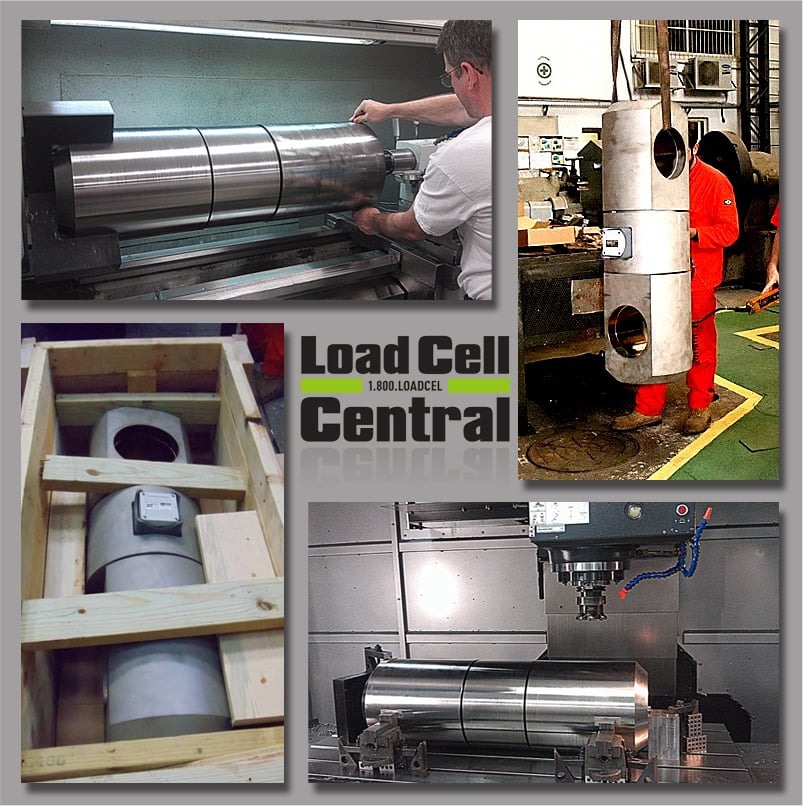

custom 300 metric ton capacity tension link load cell

Let us design the perfect load cell for your application!

Our engineers are eagerly awaiting your call.  Specify any requirement you have and we will make it happen.  Custom load cell outputs are available.  These outputs include, but are not limited to: mV/V, 4-20mA, 0-5VDC, 0-10VDC, +/-10VDC, RS232, RS485, or USB.

We also have the capability to produce submersible load cells.  For use in saltwater or freshwater to depths of up to and exceeding 4,000 meters, Load Cell Central can offer a suitable custom load cell.

Load Cell Central also offers dual bridge and triple bridge options.
