CTD: Low Profile Tension & Compression Load Cell

Low Profile Tension & Compression Load Cell

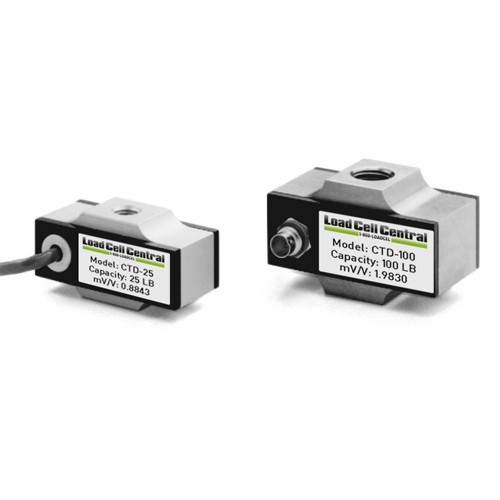

LOAD CELL CENTRAL's low-profile load cell model CTD, with its height of 1" or less is ideal for "straight through" tension weighing applications in confined areas where height is a factor.  Its quality engineered aluminum construction, black anodized coating, and tenacious cable and instrumentation potting provide corrosion resistance and protection in hostile environments.

Capacities

10, 25, 50, 75, 100, 150, 200, 300, 500, 750, 1K lb

Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.CapacityDescriptionPriceQty.
    CTD-1010 lbMiniature Tension & Compression Load Cell$332.00
    increase
    decrease
    CTD-2525 lbMiniature Tension & Compression Load Cell$332.00
    increase
    decrease
    CTD-5050 lbMiniature Tension & Compression Load Cell$332.00
    increase
    decrease
    CTD-7575 lbMiniature Tension & Compression Load Cell$332.00
    increase
    decrease
    CTD-100100 lbMiniature Tension & Compression Load Cell$332.00
    increase
    decrease
    CTD-150150 lbMiniature Tension & Compression Load Cell$332.00
    increase
    decrease
    CTD-200200 lbMiniature Tension & Compression Load Cell$332.00
    increase
    decrease
    CTD-300300 lbMiniature Tension & Compression Load Cell$332.00
    increase
    decrease
    CTD-500500 lbMiniature Tension & Compression Load Cell$439.00
    increase
    decrease
    CTD-750750 lbMiniature Tension & Compression Load Cell$439.00
    increase
    decrease
    CTD-1K1,000 lbMiniature Tension & Compression Load Cell$439.00
    increase
    decrease
    Additional Options
    Part No.DescriptionPriceQty.
    CTD-COQuick Disconnect Option for CTD, Includes 10' Cable Assembly$86.00

    CA-04-06-010-4Mating Connector with 10' of 4-Condcutor Load Cell Cable$75.00

    CA-04-06-020-4Mating Connector with 20' of 4-Condcutor Load Cell Cable$91.00

    CA-04-06-030-4Mating Connector with 30' of 4-Condcutor Load Cell Cable$107.00

    add to cart

    Brochures



    Specifications

    Safe Overload:
    150% F.S.
    Compensated Temp. Range:
    60-160°F
    Full Scale Output:
    2.00 mV/V
    Temp. Effect Span:
    0.005% of Rdg / °F
    Excitation:
    1-10 VDC
    Temp. Effect Zero:
    0.005% of FS/ °F
    Combined Error:
    0.10% F.S.
    Bridge Resistance:
    350 Ohms

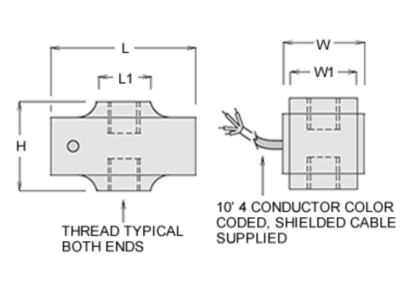

    ctd miniature load cell diagram
    ctd load cell dimensions
