Miniature Load Cell Low-Profile "Button" Model: VLPA

Miniature Load Cell Low-Profile

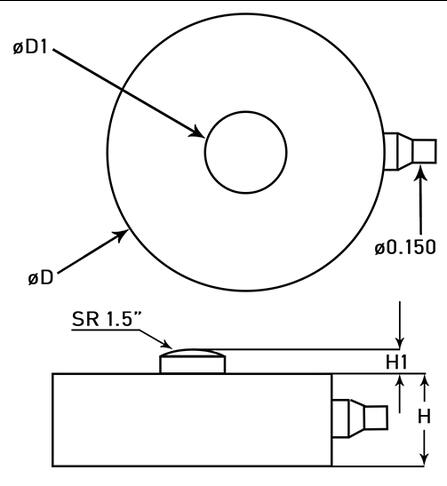

Load Cell Central's VLPA low profile miniature load cell is designed to measure load ranges from 25 to 1,000 lbs. With subminiature dimensions, including diameters from .375" to 0.75" and height of only 0.25", these units are easily incorporated into systems having limited space.

Brochures

Capacities

25, 50, 100, 250, 500, 750, 1000 lbs.

Specifications

Rated Output:  2mV/V Nominal
Non-Linearity:   0.25% FS
Hysteresis: 0.25% FS
Non-Repeatability: 0.1% FS
Bridge Resistance: 350Ω Nom.
Zero Balance: 1% FS
Temp. Effect on Output: 0.005% Rdg./°F
Temp. Effect on Zero: 0.01% FS/°F
Compensated Temp.: 60 to 160°F
Operating Temp.: -65 to 200°F
Recommended Excitation: 10VDC (25 & 50lb 5VDC)
Safe Overload: 150% FS
Full Scale Deflection: 0.002" Nominal

Product Pricing

Part No.CapacityDescriptionPriceQty.
VLPA-2525 lbMiniature Load Cell, Button Type$423.00

VLPA-5050 lbMiniature Load Cell, Button Type$423.00

VLPA-100100 lbMiniature Load Cell, Button Type$423.00

VLPA-250250 lbMiniature Load Cell, Button Type$423.00

VLPA-500500 lbMiniature Load Cell, Button Type$423.00

VLPA-750750 lbMiniature Load Cell, Button Type$423.00

VLPA-1K1,000 lbMiniature Load Cell, Button Type$423.00
