TCT1: Miniature Low Force Load Cell Tension and Compression

Miniature Low Force Load Cell Tension and Compression

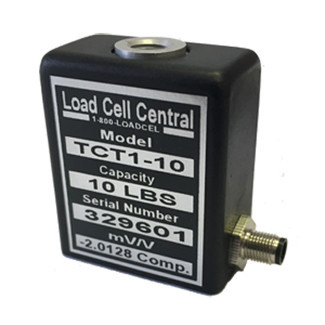

The TCT1 miniature load cell is designed for low capacity applications such as robotics and tensile testing machines.  Manufactured from anodized aluminum, this miniature load cell has a height of only 1.375”. The load cell’s connector and included 10’ cable assembly allow easy installation of the force sensor.

Load Cell Central has a full line of digital displays and load cell amplifiers for the TCT1 miniature load cell.  Contact us with your requirements.



Capacities

(lb)  2.5, 5, 10, 25, 50, 75, 100



add to cartProduct Pricing

Part No.CapacityDescriptionPriceQty.
TCT1-2.52.5 lbLow Capacity In-Line Load Cell, Includes 10' Cable Assembly$520.00
increase
decrease
TCT1-55 lbLow Capacity In-Line Load Cell, Includes 10' Cable Assembly$520.00
increase
decrease
TCT1-1010 lbLow Capacity In-Line Load Cell, Includes 10' Cable Assembly$520.00
increase
decrease
TCT1-2525 lbLow Capacity In-Line Load Cell, Includes 10' Cable Assembly$520.00
increase
decrease
TCT1-5050 lbLow Capacity In-Line Load Cell, Includes 10' Cable Assembly$520.00
increase
decrease
TCT1-7575 lbLow Capacity In-Line Load Cell, Includes 10' Cable Assembly$520.00
increase
decrease
TCT1-100100 lbLow Capacity In-Line Load Cell, Includes 10' Cable Assembly$520.00
increase
decrease
Additional Options
Part No.DescriptionPriceQty.
CA-04-06-010-4Mating Connector with 10' of 4-Condcutor Load Cell Cable$75.00

CA-04-06-020-4Mating Connector with 20' of 4-Condcutor Load Cell Cable$91.00

CA-04-06-030-4Mating Connector with 30' of 4-Condcutor Load Cell Cable$107.00

Brochures



miniature tension load cell dimensions
