Model LPSWC-B: Precision Compression Load Cell

Precision Compression Load Cell

Load Cell Central's compression-only shear web load cell model LPSWC-B is ideal for structural and materials testing, and compressive force measurement applications. This specific compression load cell's design helps resist errors caused by extraneous bending and side loads. Standard output is 4 mV/V for most capacities (for example, 40 millivolts full scale with 10V excitation). You may choose from a number of our load cell digital indicators or load cell amplifiers to be used with this force transducer.

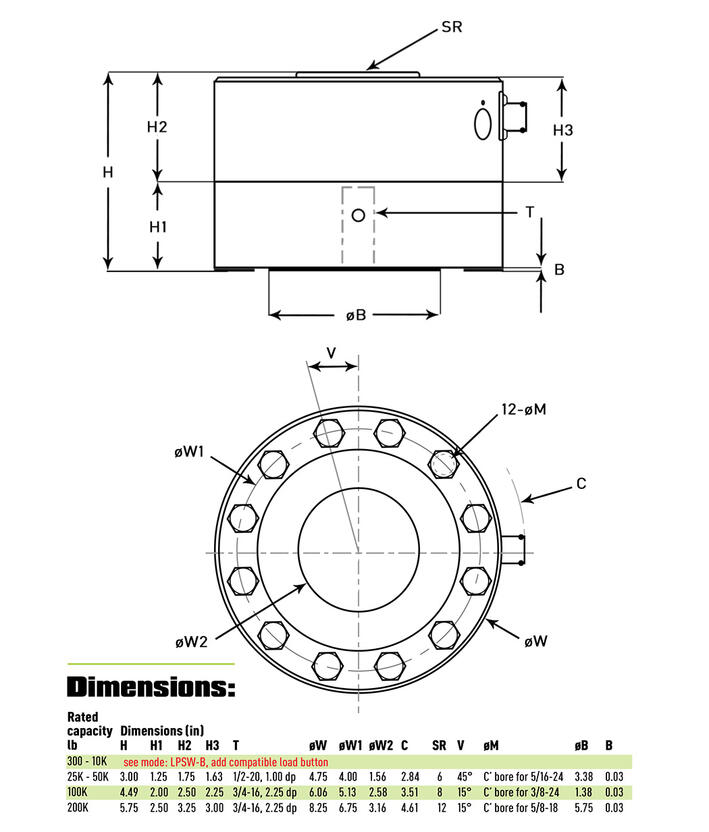

See the brochure for a full list of electrical specifications and dimensions.

Note: The 300 to 10,000 LB capacity units are the model LPSW-B and use a spherical load button; the 25,000 to 200,000 lb capacity units have an integral spherical loading surface.

Capacities

300, 500, 1K, 2K, 5K, 10K, 25K, 50K, 100K, 200K lbs
