Model SWCM: Economical Compression Shear Web Load Cell

Economical Compression  Shear Web Load Cell

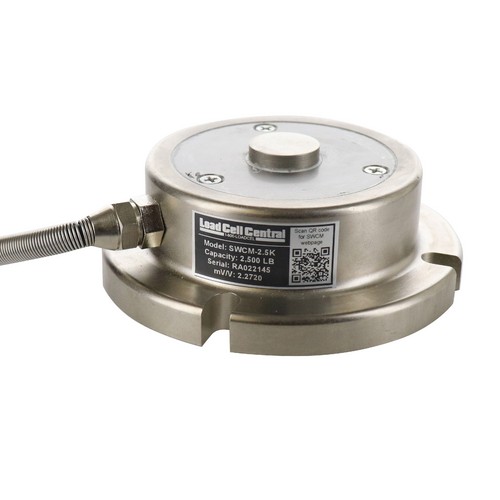

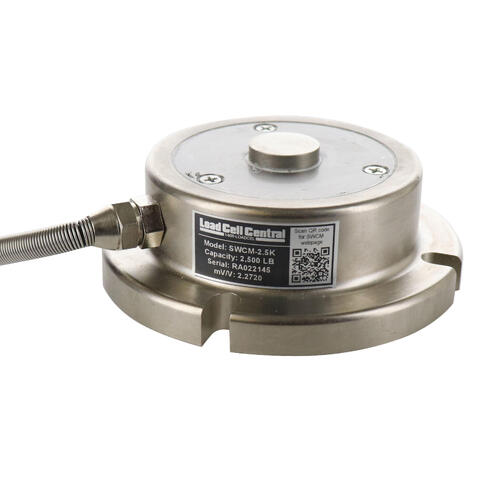

The SWCM versatile precision pancake load cell is designed for compression loads in materials testing, force calibration of presses, and many technical and industrial compressive force measurement applications. Constructed of nickel-plated high alloy tool steel and fully potted to IP65 to protect from water damage, the SWCM force sensor has four bolt slots for quick and easy mounting. Standard output is 2 mV/V (for example, 20 millivolts full scale with 10V excitation), making it compatible with a wide variety of load cell amplifiers (for interface with a PC, PLC, or data recorder) and with standard load cell digital displays.

Brochures

Capacities

2.5K, 5K 7.5K, 10K, 25K, 35K, 45K lb

Reviews

Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.CapacityDescriptionPriceQty.
SWCM-2.5K2,500 lbEconomical Compression Only Shear Web Load Cell$395.00
increase
decrease
SWCM-5K5,000 lbEconomical Compression Only Shear Web Load Cell$395.00
increase
decrease
SWCM-7.5K7,500 lbEconomical Compression Only Shear Web Load Cell$395.00
increase
decrease
SWCM-10K10,000 lbEconomical Compression Only Shear Web Load Cell$395.00
increase
decrease
SWCM-25K25,000 lbEconomical Compression Only Shear Web Load Cell$495.00
increase
decrease
SWCM-35K35,000 lbEconomical Compression Only Shear Web Load Cell$495.00
increase
decrease
SWCM-45K45,000 lbEconomical Compression Only Shear Web Load Cell$495.00
increase
decrease

add to cart

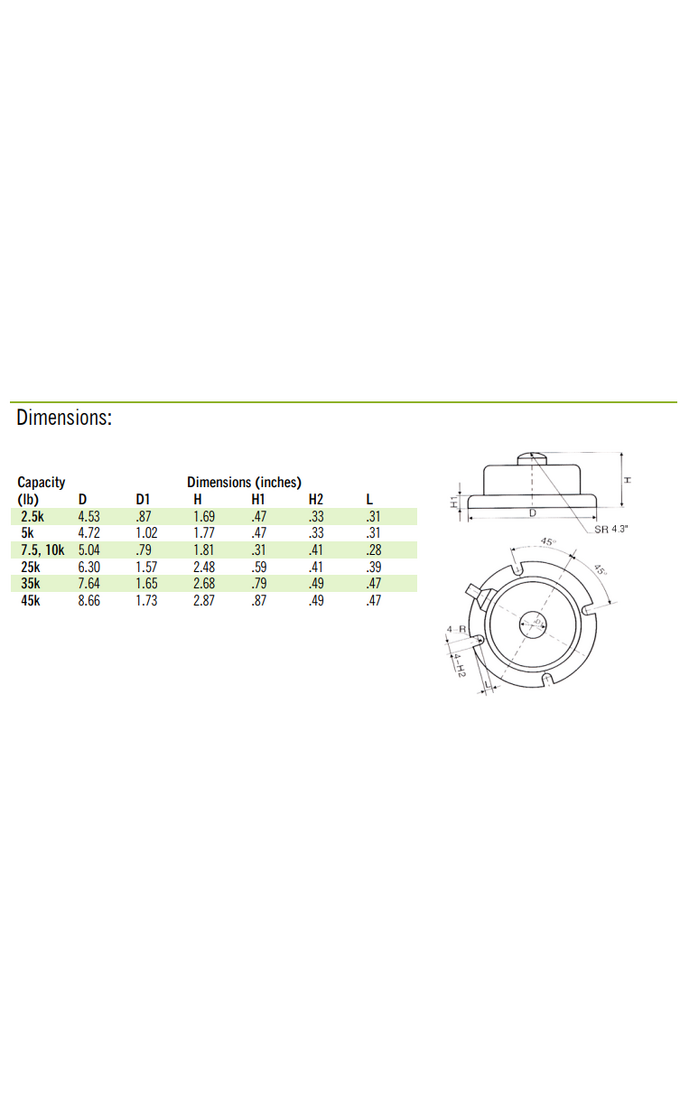

swcm load cell dimensions

There are no reviews yet for this product. Write a Review

Product Bulletins
