Model JRS1: Miniature S-Type Load Cell

Miniature S-Type Load Cell

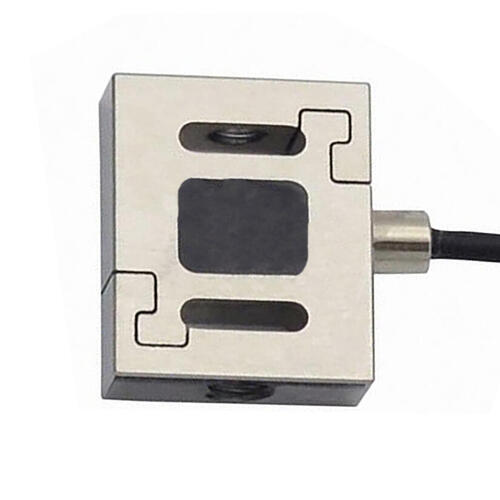

Load Cell Central’s JRS1 is a miniature S-Type load cell.  Its compact size — making it ideal for applications where space is limited — combined with its available nine different low capacities, from ½ pound to 112 pounds (2.5-500 Newtons), opens up a world of possible applications in which it may previously have been much more difficult or costly to implement strain gage load cells.  The JRS1 works equally well in either tension or compression (“universal” design).  A threaded (M3 or M4 depending on capacity) mounting hole on each end simplifies installation.

Capacities

(Newtons) 2.5, 5, 10, 20, 50, 100, 200, 300, 500
(Pounds) 0.5, 1.1, 2.2, 4.5, 11.2, 22.4, 44.9, 67.4, 112.4

Brochures

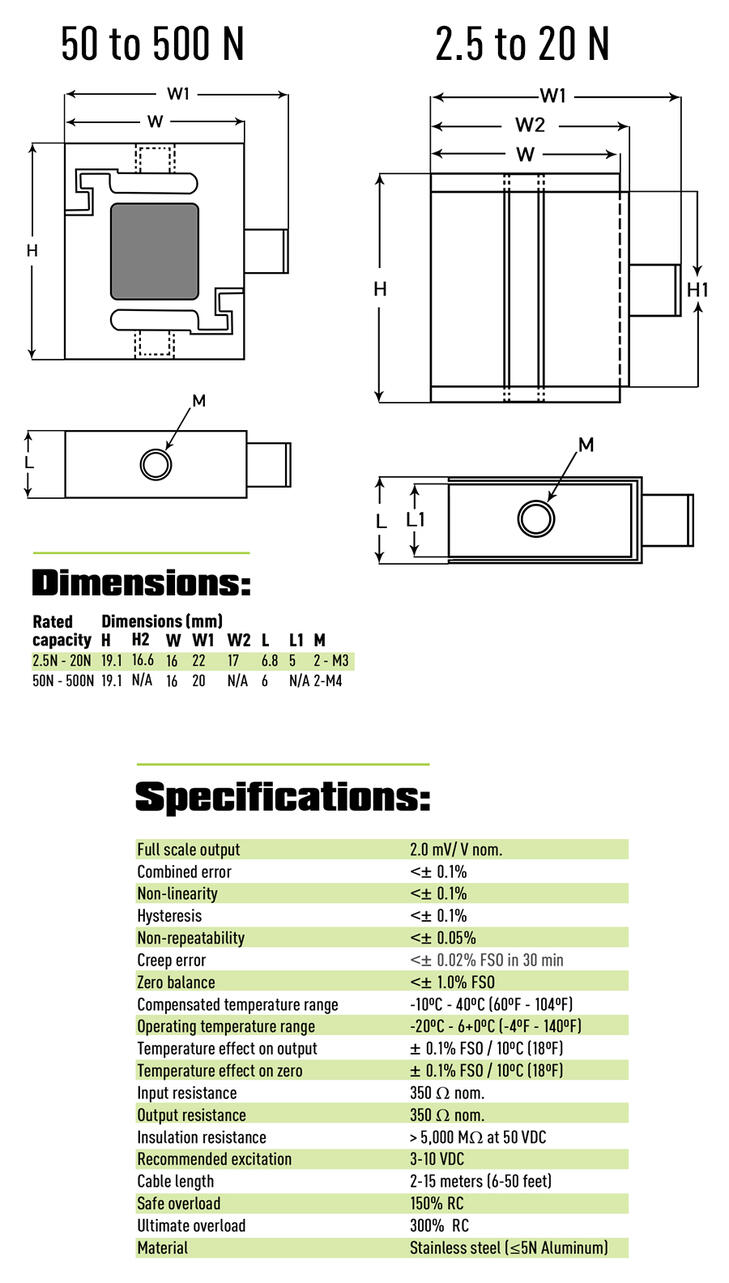

Dimensions (mm)

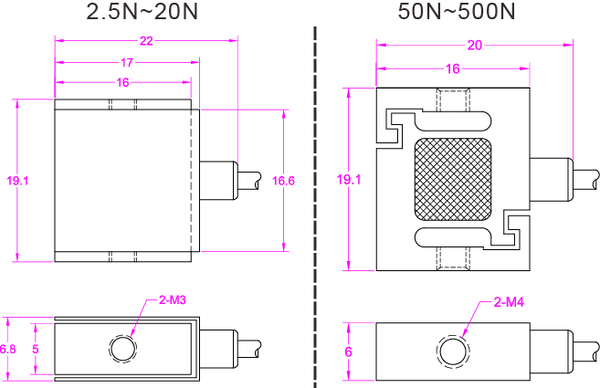

Miniature S-Type Load Cell Dimensions

Specifications

Output:
2mV/V nominal
Zero Balance:
±1% of F.S.
Nonlinearity:
0.1% of F.S.
Recommended Excitation:
3-10V
Non-Repeatability:
0.05% of F.S.
Hysteresis:
0.1% of F.S.
Safe Overload:
150% of F.S.
Comp.Temp. Range:
-10°C to 40°C
Operating Temp. Range:
-20°C to 60°C
Bridge Resistance:
350 ohms Nominal

Product Pricing

Part No.CapacityDescriptionPriceQty.
JRS1-1010 NewtonsMiniature S-Type Load Cell$295.00

JRS1-2020 NewtonsMiniature S-Type Load Cell$295.00

JRS1-5050 NewtonsMiniature S-Type Load Cell$295.00

JRS1-100100 NewtonsMiniature S-Type Load Cell$295.00

JRS1-200200 NewtonsMiniature S-Type Load Cell$295.00

JRS1-300300 NewtonsMiniature S-Type Load Cell$295.00

JRS1-500500 NewtonsMiniature S-Type Load Cell$295.00

Additional Options
Part No.DescriptionPriceQty.
RE-M3M3x0.5 Carbon Steel Rod End$15.00

RE-M4M4x0.7 Carbon Steel Rod End$15.00
