Model XLS2-HSS: S Beam Load Cell

S Beam Load Cell

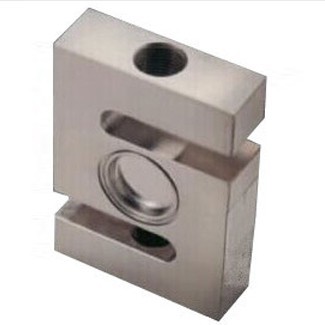

Load Cell Central's XLS2-HSS is a stainless steel and hermetically sealed S beam load cell which can be used in either tension or compression applications. Applications include but not limited to tensile testing, crane scales, vessel weighing, and batching processes. This load cell is ideal for outdoor and harsh industrial environments.

Standard Capacity 500/750/1K 1.5K, 2K, 2.5K, 3K, 5K, 10K lb
Recommended Excitation 10 V AC/DC Compensated Temp. Range -10°C to +40°C
Maximum Excitation 15 V AC/DC Operating Temp. Range -20°C to +60°C
Output at Rated Load 2 mV/V±10% Zero Balance ±1%
Combined Error 0.03% Input Resistance 385±5
Non Repeatability 0.01% Output Resistance 350±3
Creep (20 minutes) 0.03% Insulation Resistance(50VDC) >5000 M
Zero Return (20 minutes) 0.03% Deflection at Rated Load <1mm
Temp. Effect/10°C on Span 0.015% Safe Overload 150%
Temp. Effect/10°C on Zero 0.026% Ultimate Overload 300%
S-Beam Load Cell Dimensions



Capacity    L W H T
500 / 750 / 1K / 1.5K / 2K / 2.5K / 3K lb (mm) 50.8 25.4 75.4  1/2-20UNF
(inch) 2.00 1.00 2.96
5K / 10K lb (mm) 76.2 25.4 107.9 3/4-16UNF
(inch) 3.00 1.00 4.25

Reviews

Overall Rating (1 review ): 5 Write a Review

add to cartProduct Pricing

Part No.CapacityDescriptionStatusPriceQty.
XLS2-HSS-500500 lbStainless Steel Hermetically Sealed S Beam Load CellCall for Lead Time$500.00
increase
decrease
XLS2-HSS-750750 lbStainless Steel Hermetically Sealed S Beam Load CellCall for Lead Time$595.00
increase
decrease
XLS2-HSS-1K1,000 lbStainless Steel Hermetically Sealed S Beam Load CellCall for Lead Time$595.00
increase
decrease
XLS2-HSS-1.5K1,500 lbStainless Steel Hermetically Sealed S Beam Load CellCall for Lead Time$595.00
increase
decrease
XLS2-HSS-2K2,000 lbStainless Steel Hermetically Sealed S Beam Load CellCall for Lead Time$595.00
increase
decrease
XLS2-HSS-2.5K2,500 lbStainless Steel Hermetically Sealed S Beam Load CellCall for Lead Time$595.00
increase
decrease
XLS2-HSS-3K3,000 lbStainless Steel Hermetically Sealed S Beam Load CellCall for Lead Time$595.00
increase
decrease
XLS2-HSS-5K5,000 lbStainless Steel Hermetically Sealed S Beam Load CellCall for Lead Time$795.00
increase
decrease
XLS2-HSS-10K10,000 lbStainless Steel Hermetically Sealed S Beam Load CellCall for Lead Time$795.00
increase
decrease

add to cart

Pedro Linares July 30, 2023
XLS2-HSS-3K Excellent load cell I have been using the last 3 years almost 10 time per week, certificated every single years , never found out tolerance.
