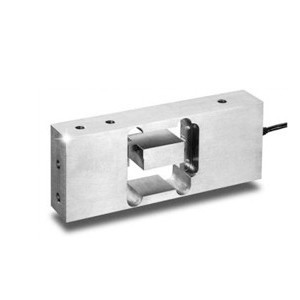

Model STSP1: Stainless Steel Single Point Load Cell

Stainless Steel Single Point Load Cell

The STSP1 stainless steel load cell is designed for harsh environments and high accuracy applications. With a combined error of 0.017% FS it is the most accurate load cell of its type on the market. Low in cost and suitable for a wide variety of OEM and force measurement applications, the STPS1 load cell is readily available in large or small quantities.

Direct interchange for the HPSM load cell.

Capacities

6, 12, 30, 60 kg.

Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.CapacityDescriptionPriceQty.
    STSP1-66 kgStainless Steel Single Point Load Cell$600.00
    increase
    decrease
    STSP1-1212 kgStainless Steel Single Point Load Cell$600.00
    increase
    decrease
    STSP1-3030 kgStainless Steel Single Point Load Cell$600.00
    increase
    decrease
    STSP1-6060 kgStainless Steel Single Point Load Cell$600.00
    increase
    decrease

    add to cart

    Dimensions (mm)

    Load Cell Dimensions

    Recommended Max. Platform Size

    6 - 12kg: 350 x 350 mm (13.8" x 13.8")

    30 - 60kg: 420 x 420 mm (16.5" x 16.5")

    Specifications

    Output:
    2mV/V Nominal
    Combined Error:
    0.017%
    Creep (30 minutes) :
    0.025%
    Zero Return:
    0.017%
    Thermal Sensitivity Shift:
    0.0012%/°C
    Thermal Zero Shift:
    0.0030%/°C
    Compensated Temperature Range:
    -10° to 40°C
    Operating Temperature Range:
    -20° to 60°C
    Zero Balance:
    ±10% R.O.
    Input Resistance:
    385 ± 20 Ohm
    Output Resistance:
    350 ± 5 Ohm
    Recommended Excitation:
    10 Volts (15V max)
    Insulation Resistance:
    >5000 M/ohm
    Safe Overload:
    150%
