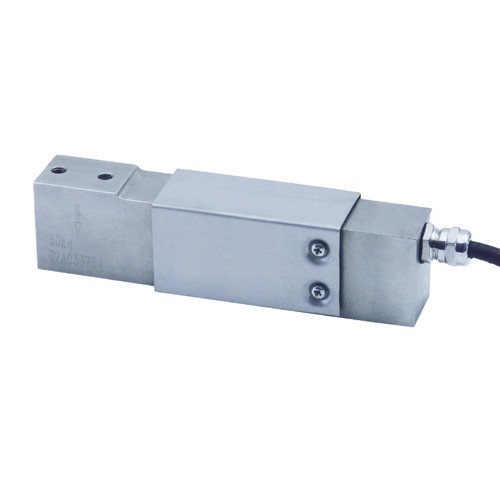

Model GCB3-SS: Stainless Steel Single Point Load Cell

Stainless Steel Single Point Load Cell

The GCB3-SS low cost, low profile off center* load cell is designed for harsh environments.  It is manufactured from stainless steel and sealed to IP67. This load cell is ideal for washdown areas commonly found in the food, pharmaceutical, and chemical industries.

Recommended max. platform size: 400mm X 400mm (16”x16”).

* The "off-center" or moment compensation allows for support by a single load cell at the center of the platform. Up to the specified platform size limit (which for this model is 16" x 16"), the cell will weigh within stated accuracy specifications independent of where the load is positioned on the platform.

Brochures

Capacities (kg)

5, 8, 10, 15, 20, 30, 50, 75, 100, 150, 200

Reviews

There are no reviews yet for this product. Write a Review

    add to cartProduct Pricing

    Part No.CapacityDescriptionPriceQty.
    GCB3-SS-55 kgStainless Steel Single Point Load Cell$320.00
    increase
    decrease
    GCB3-SS-88 kgStainless Steel Single Point Load Cell$320.00
    increase
    decrease
    GCB3-SS-1515 kgStainless Steel Single Point Load Cell$320.00
    increase
    decrease
    GCB3-SS-2020 kgStainless Steel Single Point Load Cell$320.00
    increase
    decrease
    GCB3-SS-3030 kgStainless Steel Single Point Load Cell$320.00
    increase
    decrease
    GCB3-SS-5050 kgStainless Steel Single Point Load Cell$320.00
    increase
    decrease
    GCB3-SS-7575 kgStainless Steel Single Point Load Cell$320.00
    increase
    decrease
    GCB3-SS-100100 kgStainless Steel Single Point Load Cell$320.00
    increase
    decrease
    GCB3-SS-150150 kgStainless Steel Single Point Load Cell$320.00
    increase
    decrease
    GCB3-SS-200200 kgStainless Steel Single Point Load Cell$320.00
    increase
    decrease

    add to cart

    gcb3-ss diagramgcb3-ss specifications

    gcb3-ss dimensions



    Product Bulletins
