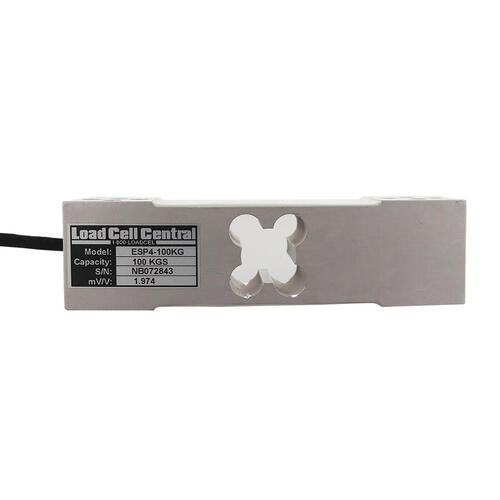

Model ESP4: Economical Single Point Load Cell

Economical Single Point Load Cell

The Model ESP4 single point load cell is designed for electronic bench and platform scales, medical scales, and any application where a low profile load cell design is a must. Low in cost and suitable for a wide variety of OEM and force measurement applications, the ESP4 single point load cell is readily available in large or small quantities. The strain gage area and electronic parts are coated and sealed to provide water resistant service under harsh industrial conditions.

A tension and compression mounting assembly available model: Duramount 21, see the sketches below for mounting examples/ideas.

Brochures



add to cartProduct Pricing

Part No.CapacityDescriptionPriceQty.
ESP4-0.6600 gSingle Point Load Cell$195.00
increase
decrease
ESP4-11 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-33 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-55 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-66 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-88 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-1010 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-1515 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-2020 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-3030 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-3535 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-4040 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-5050 kgSingle Point Load Cell$195.00
increase
decrease
ESP4-50LE50 kgSingle Point Load Cell Large Element 50 KG$235.00
increase
decrease
ESP4-6060 kgSingle Point Load Cell$235.00
increase
decrease
ESP4-8080 kgSingle Point Load Cell$235.00
increase
decrease
ESP4-100100 kgSingle Point Load Cell$235.00
increase
decrease
ESP4-150150 kgSingle Point Load Cell$235.00
increase
decrease
ESP4-200200 kgSingle Point Load Cell$235.00
increase
decrease
ESP4-300300 kgSingle Point Load Cell$235.00
increase
decrease
Additional Options
Part No.DescriptionPriceQty.
DM-21-SEDuramount 21 Small Element Mounts for the ESP4 (Sold in Pairs)$100.00

DM-21-LEDuramount 21 Mounts for the ESP4 (Sold in Pairs)$125.00

add to cart

esp4 specifications

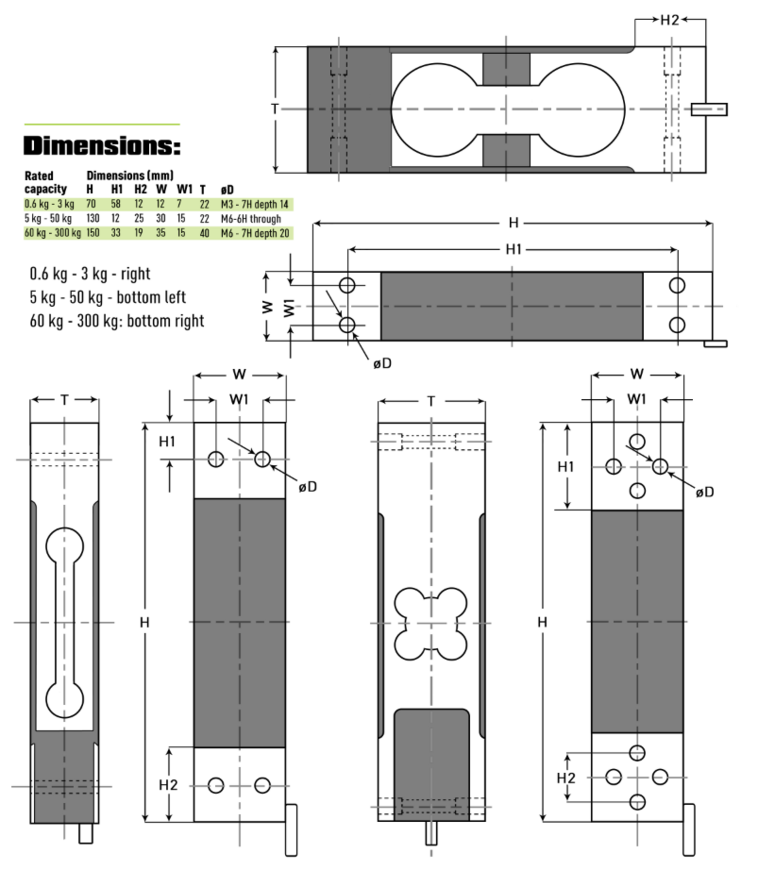

esp4 diagrams and dimensions - all capacities

ESP4 Load Cell Mounting Example   Single Point Load cell mounting example
