Model DCL12: Dynamometer Tension Link Load Cell

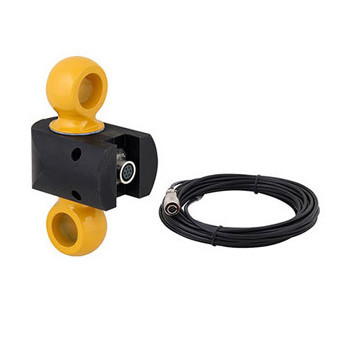

The DCL12 & DCL12-S1 dynamometer tension link load cells are designed for the lowest profile possible because headroom is a precious commodity in many lifting applications.  The lifting eyes are rotated 90 degrees from each other allowing another axis of movement which is essential for lifts where the load may sway.  The DCL12 is manufactured from alloy steel and is powder-coated to prevent corrosion.  The load cell is built with a connector and includes the mating connector with a 10 meter 6-conductor cable (load cell cable length can be customized at the time of order).
Load Cell Central also offers other tension link dynamometers with integral cables, stainless steel construction, and submersible load cells.

Capacities

(t) 0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100

Reviews

There are no reviews yet for this product. Write a Review

• PRICING
• ADDITIONAL INFORMATION
• REVIEWS

Product Pricing

Part No.	Capacity	Description	Status	Price	Qty.
DCL12-0.5t	500 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$885.00	Quantity
DCL12-1t	1,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$885.00	Quantity
DCL12-2t	2,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$885.00	Quantity
DCL12-3t	3,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$885.00	Quantity
DCL12-5t	5,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$945.00	Quantity
DCL12-10t	10,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$990.00	Quantity
DCL12-20t	20,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$2,785.00	Quantity
DCL12-30t	30,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$4,370.00	Quantity
DCL12-50t	50,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$4,250.00	Quantity
DCL12-100t	100,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$4,720.00	Quantity
DCL12-S1-0.5t	500 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$690.00	Quantity
DCL12-S1-1t	1,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$690.00	Quantity
DCL12-S1-2t	2,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$690.00	Quantity
DCL12-S1-3t	3,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$790.00	Quantity
DCL12-S1-5t	5,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$1,275.00	Quantity
DCL12-S1-10t	10,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$1,100.00	Quantity
DCL12-S1-20t	20,000 kg	Low-Profile Dynamometer Tension Link Load Cell	Call for Lead Time	$1,200.00	Quantity
Additional Options
Part No.		Description	Status	Price	Qty.
2BS-2t		Bow Shackle for DCL12-0.5t to 2t Tension Link (Do Not Exceed Load Cell Capacity)	Call for Lead Time	$255.00	Quantity
2BS-3.25t		Bow Shackle for DCL12-3t Tension Link (Do Not Exceed Load Cell Capacity)	Call for Lead Time	$38.00	Quantity
2BS-5t		Bow Shackle for DCL12-5t Tension Link	Call for Lead Time	$41.00	Quantity
2BS-12.5t		Bow Shackle for DCL12-10t Tension Link (Do Not Exceed Load Cell Capacity)	Call for Lead Time	$102.00	Quantity
2BS-20t		Bow Shackle for DCL12-20t Tension Link (Do Not Exceed Load Cell Capacity)	Typical Lead Time: 1-2 Weeks	$237.00	Quantity
2BS-30t		Bow Shackle for DCL12-30t Tension Link	Call for Lead Time	$320.00	Quantity
2BS-50t		Bow Shackle for DCL12-50t Tension Link	Call for Lead Time	$835.00	Quantity
2BS-110t		Bow Shackle for DCL12-100t Tension Link (Do Not Exceed Load Cell Capacity)	Call for Lead Time	$2,805.00	Quantity
2BS-2.5t		Bow Shackle for DCL12-S1-0.5t to 2t Tension Link (Do Not Exceed Load Cell Capacity)	Call for Lead Time	$33.00	Quantity
3BS-3.25t		Bow Shackle for DCL12-S1-3t Tension Link (Do Not Exceed Load Cell Capacity)	Call for Lead Time	$14.00	Quantity
3BS-6.5t		Bow Shackle for DCL12-S1-5t Tension Link (Do Not Exceed Load Cell Capacity)	Call for Lead Time	$27.00	Quantity
3BS-13.5t		Bow Shackle for DCL12-S1-10t Tension Link (Do Not Exceed Load Cell Capacity)	Call for Lead Time	$67.00	Quantity
3BS-25t		Bow Shackle for DCL12-S1-20t Tension Link (Do Not Exceed Load Cell Capacity)	Call for Lead Time	$160.00	Quantity

Brochures

• DCL12 Brochure 446kb

Features

• Combined error 0.05% of full scale
• Compensated temp. -10 to 50ºC
• Safe overload 200% of full scale
• Ultimate overload 500% of full scale
• Mating connector with10 meter load cell cable included

Options

• Shackles
• Stainless steel load cell
• Pelican® carry case
