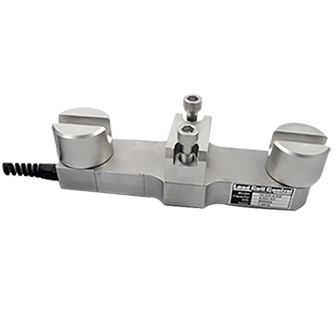

Model DLWS: Wire Rope Clamp-On Load Cell

Wire Rope Clamp-On Load Cell

Load Cell Central's DLWS clamp-on load cell is designed to clamp onto a static cable / wire rope allowing for a simple way of detecting overload conditions on a crane, hoist, or winch. Using one of our digital indicators or load cell amplifiers, the system can provide relay ouptuts to activate a light. shut down the lifting operation, activate an audible alarm, or any combination of these.

Brochures

Capacities

0.5t, 1t, 1.5t, 2.5t, 4t, 8t, 10t (Custom capacities available.)



Reviews

Online ordering coming soon

There are no reviews yet for this product. Write a Review

Share this page

add to cartProduct Pricing

Part No.CapacityDescriptionPriceQty.
DLWS-.5t500 kgClamp On Load Cell for Wire Rope$960.00
increase
decrease
DLWS-1t1,000 kgClamp On Load Cell for Wire Rope$960.00
increase
decrease
DLWS-1.5t1,500 kgClamp On Load Cell for Wire Rope$960.00
increase
decrease
DLWS-2.5t2,500 kgClamp On Load Cell for Wire Rope$1,035.00
increase
decrease
DLWS-4t4,000 kgClamp On Load Cell for Wire Rope$1,125.00
increase
decrease
DLWS-8t8,000 kgClamp On Load Cell for Wire Rope$1,260.00
increase
decrease
DLWS-10t10,000 kgClamp On Load Cell for Wire Rope$1,260.00
increase
decrease

add to cart

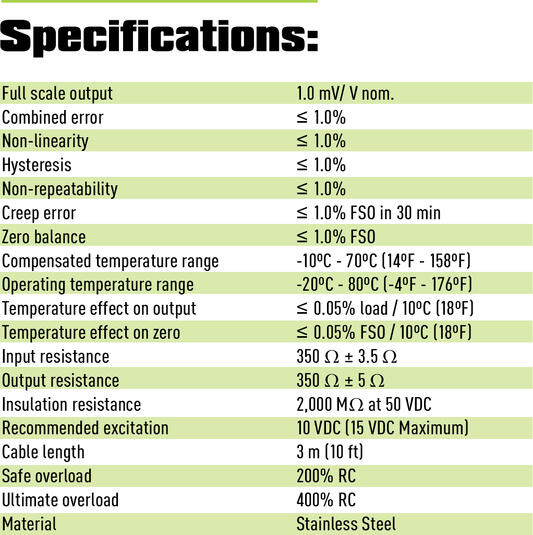

dlws specifications

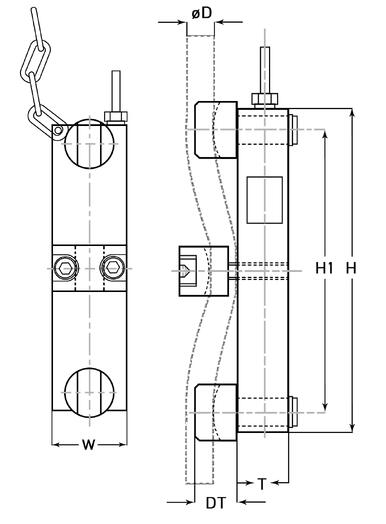

dlws diagramdlws dimensions

Options

  • Telemetry system for wireless operation
    (Shown below is a custom wireless Crane Load Limiter with industrial enclosures, large battery to power the system for up to 6 weeks between charges, and power supply for the receiver and load cell electronics)
Wireless clamp-on load cell load limiter

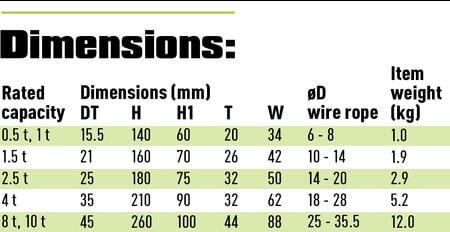

Dimensions

Clamp On Load Cell Dimensions

Capacity
(Metric Tons)
Dimensions (mm)
C DT H T W Dia. Wire Rope Item Weight (kg)
0.5, 1 60 15.5 140 20 34 6 - 8 1.0
1.5 70 21 160 26 42 10 - 14 1.9
2.5 75 25 180 32 50 14 - 20 2.9
4 90 35 210 32 62 18 - 28 5.2
8, 10 100 45 260 44 88 25 - 35.5 12.0
